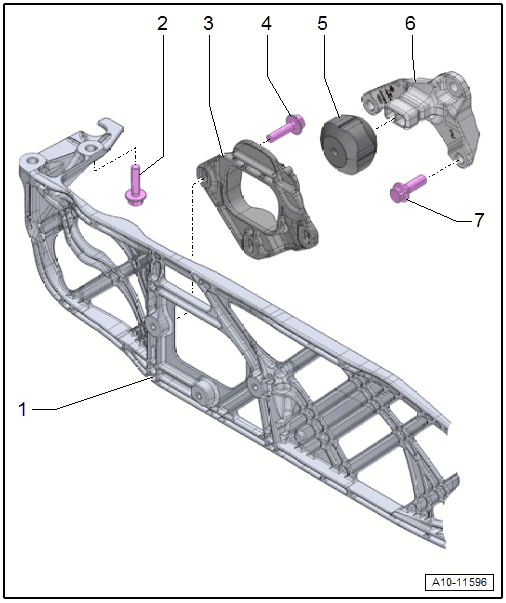

Overview - Torque Support
WARNING: This page is about a different car, the 2016 Audi Q5, 2015 Audi Q5, and 2014 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.
- Crossmember
- Removing and installing, refer to TORQUE SUPPORT AND CROSSMEMBER, REMOVING AND INSTALLING .
- Bolt
- 20 Nm
- Stop
- For torque bracket
- Bolt
- 30 Nm
- Adjusting Buffer
- For torque bracket
- Torque Bracket
- Removing and installing, refer to TORQUE SUPPORT AND CROSSMEMBER, REMOVING AND INSTALLING .
- Bolt
- 70 Nm
