Engine, Securing On Engine And Transmission Holder

WARNING: This page is about a different car, the 2016 Audi Q5, 2015 Audi Q5, and 2014 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Lifting Tackle 3033
Engine and Transmission Holder VAS6095
Shop Crane VAS6100
Lift Arm Extension VAS6101
Engine/Transmission Holder - V6 TDI Bracket VAS6095/1-11

Procedure

Fig 1: Identifying Engine Assembly Lift Tools

Courtesy of AUDI OF AMERICA, LLC

Engine/transmission assembly removed and separated on Scissor Lift Table VAS6131B.
Engine secured with Articulated Joint Support VAS6131/13-7.

-- Attach the Lift Arm Extension VAS6101 to the Shop Crane VAS6100.

-- Engage the Lifting Tackle 3033 on the engine lifting eyes and on the shop crane as shown in the illustration.

-- Tension engine slightly with shop crane, do not raise.

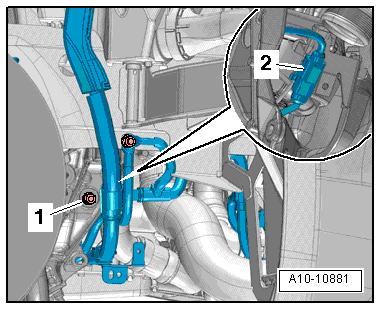

-- Disconnect the left and right connectors -2- for the Electrohydraulic Engine Mount Solenoid Valve -N144- / -N145- and remove from the bracket.

Fig 2: Locating Nut On Electrical Wiring Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nut -1- and remove the bracket with the wiring harness from the subframe.

NOTE:

The installation position with the engine installed is shown in the illustration.

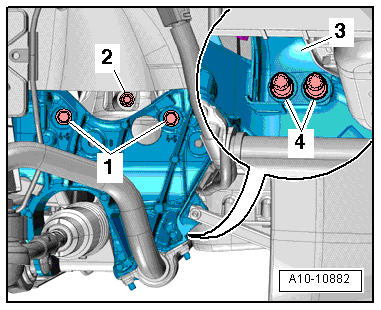

-- Remove the left and right bolt -2- from the engine mount.

Fig 3: Identifying Bolts And Right Engine Mount Retaining Plate

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore items -1, 3 and 4-.

-- Disconnect the connector -1- from the Power Steering Control Module -J500-.

Fig 4: Identifying Connector

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harness.

NOTE:

Ignore item -2-.

-- Remove the Articulated Joint Support VAS6131/13-7 from the engine.

Fig 5: Identifying Articulated Joint Support VAS 6131/13-7

Courtesy of AUDI OF AMERICA, LLC

-- Raise engine from engine carrier.

-- Remove the bolts -arrows- and the left engine support.

Fig 6: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and the right engine support.

Fig 7: Removing Nut And Freeing Up Ground Wire

Courtesy of AUDI OF AMERICA, LLC

-- Secure the starter on the engine.

NOTE:

Ignore -item 1-.

-- Secure the engine to the Engine And Transmission Holder VAS6095 using the Engine/Transmission Holder - Universal Mounting VAS6095/1 and Engine/Transmission Holder - V6 TDI Bracket VAS6095/1-11 and tighten to 40 Nm, as illustrated.

Fig 8: Identifying Engine Stand Assembly

Courtesy of AUDI OF AMERICA, LLC
