Engine, Securing On Engine And Transmission Holder

WARNING: This page is about a different car, the 2014 Audi A8 Quattro and 2013 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools And Workshop Equipment Required

Engine Sling 2024A
Engine And Transmission Holder VAS 6095 with Engine/Transmission Holder - Universal Mounting VAS 6095/1 and Engine/Transmission Holder - V6 FSI Bracket VAS 6095/1-5
Shop Crane VAS 6100
Lift Arm Extension VAS 6101

Procedure

Engine/transmission assembly removed and separated on Scissor Lift Table VAS 6131B, refer to ENGINE AND TRANSMISSION, SEPARATING .
Engine secured with Articulated Joint Support VAS 6131/13-7.

Vehicles from 07/2010:

Fig 1: Disconnecting Connector For Wiring To Air Conditioning Compressor Clutch Solenoid

Courtesy of AUDI OF AMERICA, LLC

-- Remove the ribbed belt from the Air Conditioning (A/C) compressor, refer to RIBBED BELT, REMOVING AND INSTALLING, RIBBED BELT FOR AUXILIARY COMPONENTS .

-- Remove the A/C compressor, refer to Air Conditioning (A/C) Compressor .

All Vehicles:

NOTE:

Place a cloth underneath to soak up any escaping power steering fluid.

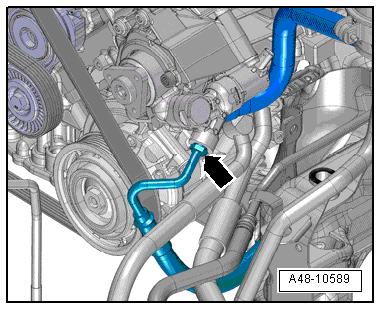

-- Remove the threaded connector -arrow-.

-- Seal the open lines and connections with clean plugs from the Engine Bung Set VAS 6122.

Fig 2: Identifying Power Steering Threaded Connector

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Risk of accident!

The engine may be transported only in the manner described and without the transmission.

The engine is separated from the transmission, refer to ENGINE AND TRANSMISSION, SEPARATING .

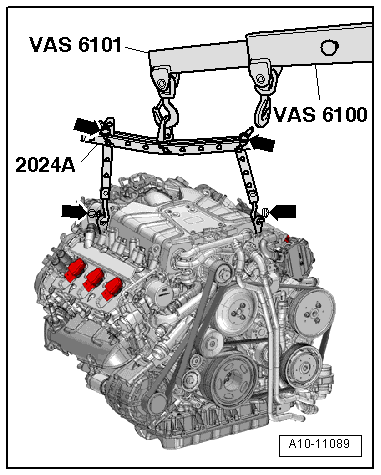

-- Engage the Engine Sling 2024A on the engine lifting eyes and on the Shop Crane VAS 6100 with Lift Arm Extension VAS 6101 as shown in the illustration.

NOTE:

To be aligned to the center of gravity of the engine assembly, the hole rails of the lifting hook must be inserted as shown in the illustration.

WARNING:

There is the risk of an accident.

Lifting hooks and alignment pins on the engine sling must be secured with locating pins -arrows-.

Fig 3: Identifying Engine Sling 2024 A

Courtesy of AUDI OF AMERICA, LLC

-- Tension engine slightly with shop crane, do not raise.

-- Remove the left and right bolt -2- from the engine mount.

NOTE:

Ignore item -1-.

Fig 4: Identifying Engine Mount Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the left and right connector -3- from the Left Electrohydraulic Engine Mount Solenoid Valve -N144- / Right Electrohydraulic Engine Mount Solenoid Valve -N145-.

Fig 5: Identifying Electrohydraulic Engine Mount Solenoid Valve

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore items -1 and 2-.

-- Remove the Articulated Joint Support VAS 6131/13-7 from the engine.

Fig 6: Identifying VAS 6131/13-7

Courtesy of AUDI OF AMERICA, LLC

-- Raise engine from engine carrier.

Vehicles through 07/2010:

Fig 7: Identifying Engine Support Bolts

Courtesy of AUDI OF AMERICA, LLC

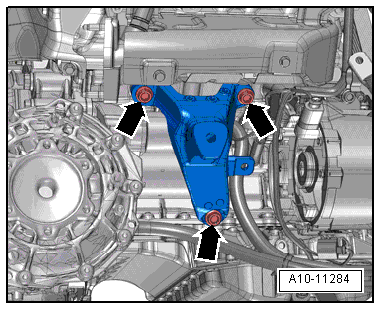

-- Remove the bolts -arrows- and remove the left engine support.

Vehicles from 07/2010:

Fig 8: Identifying Left Engine Support With Air Conditioning (A/C) Compressor Bracket

Courtesy of AUDI OF AMERICA, LLC

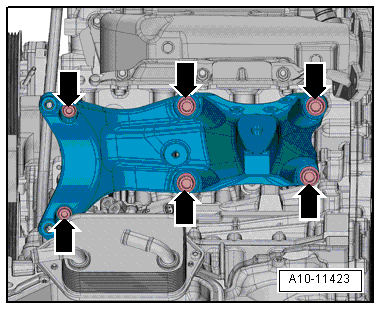

-- Remove the bolts -arrows- and the left engine support with the A/C compressor bracket.

All Vehicles:

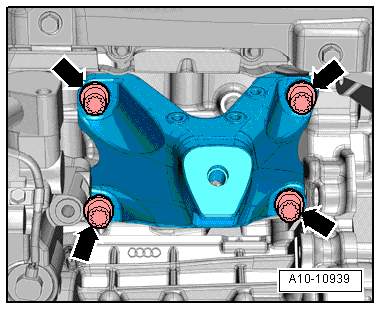

-- Remove the bolts -arrows- and the right engine support.

Fig 9: Identifying Right Engine Support

Courtesy of AUDI OF AMERICA, LLC

-- Secure the starter on the engine.

-- Tighten the engine with Engine/Transmission Holder - Universal Mounting VAS 6095/1 and Engine/Transmission Holder - V6 FSI Bracket VAS 6095/1-5 to 40 Nm on the Engine And Transmission Holder VAS 6095 as shown in the illustration.

Fig 10: Identifying Engine, Holder VAS 6095 And Bracket For V6 FSI Engine VAS 6095/1-5

Courtesy of AUDI OF AMERICA, LLC
