Component Location Overview - ANC Microphone
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2015 Audi S8, 2015 Audi A8 Quattro, 2014 Audi S8, 2014 Audi A8 Quattro, and 2013 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

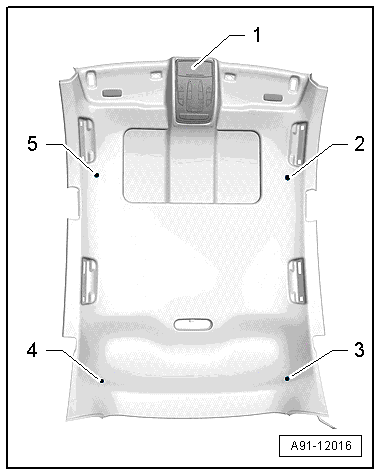

The Active Noise Cancellation (ANC) system has four additional microphones inside the headliner with special software inside the Digital Sound System Control Module -J525- (BOSE®/Bang & Olufsen®).
- Front Interior Lamp -W1- with Interior Microphone -R74-
- Left Center Microphone -R142-
- Left Rear Microphone -R144-
- Right Rear Microphone -R145-
- Right Center Microphone -R143-
The ANC microphones have a trailing cable. The coupling is inside the headliner.
It is necessary to lower the headliner in order to remove the coupling.
ANC Microphones, removing and installing, refer to ANC MICROPHONE -R142- / -R143- / -R144- / -R145-, REMOVING AND INSTALLING .
