Steering Column Switch Module (SCSM), disassembling

WARNING: This page is about a different car, the 2002 Audi S4. However, it is still accessible from the selected car via links, so may be relevant.

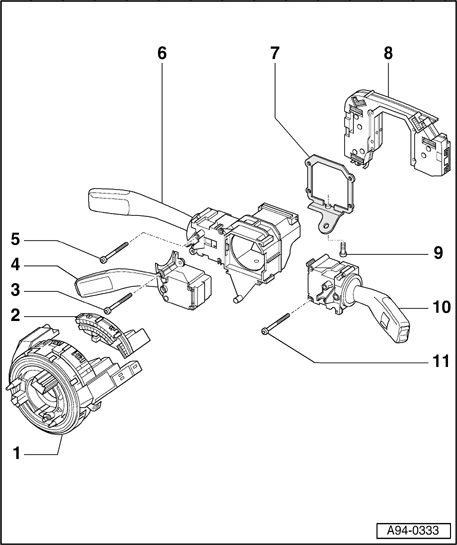

Fig 1: Steering Column Switch Module (SCSM), Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Return spring with slip ring

Clipped in at switch for turn signals, high beam and low beam and flasher

WARNING:

Return ring with slip ring must not be moved in removed condition.

2 - Steering Angle Sensor -G85-

Clipped on at return ring with slip ring

3 - Cylinder bolt

4 - Cruise control switch

5 - Cylinder bolt

Fig 2: Steering Column Switch Module (SCSM), Assembly Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

6 - Switch for turn signals, high beam and low beam and flasher

7 - Retaining bracket

8 - Steering Column Electronic Systems Control Module -J527-

Terminal assignment at Steering Column Electronic Systems Control Module -J527- (front)

9 - Clamping screw -3 Nm

10 - Switch for windshield wiper and wiper-washer operation

11 - Cylinder bolt
