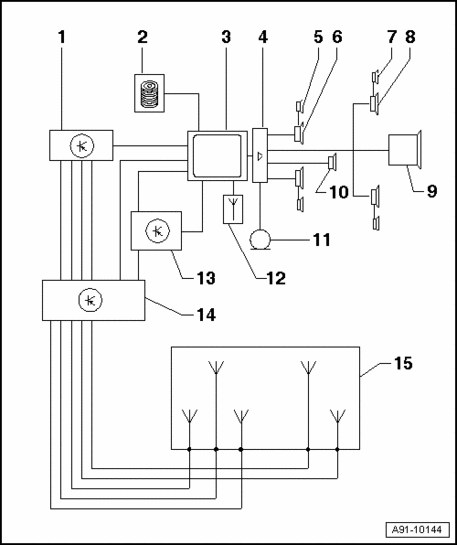

Fig 1: Navigation System II-D, BOSE Sedan Overview

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Navigation/TV Tuner J415 behind luggage compartment left side trim

2 - CD Changer R41 in glove compartment

3 - Operating Electronics, Navigation Control Module J402 in top of center console

4 - Amplifier R12 behind luggage compartment right side trim

5 - Left Front Midrange Speaker R26 / Right Front Midrange Speaker R27 at top in front doors

6 - Left Front Bass Speaker R21 / Right Front Bass Speaker R23 at bottom in front doors

7 - Left Rear Midrange Speaker R34 / Right Rear Midrange Speaker R35 at top in rear doors

8 - Left Rear Bass Speaker R15 / Right Rear Bass Speaker R17 at bottom in rear doors

9 - Bass Loudspeaker R100 in parcel shelf

10 - Inside Loudspeaker R70 in front center instrument panel

11 - Inside Microphone R74 in Front Interior Light W1

12 - Navigation System Antenna R50 behind roof end trim

13 - Navigation Interface R94 behind luggage compartment left side trim

14 - Antenna Selection Control Module J515 behind roof end trim

15 - AM/FM/TV rear window antennas
