Steering Column, Removing And Installing: Installing

WARNING: This page is about a different car, the 2021 Audi e-tron Quattro and 2019 Audi e-tron Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal and note the following:

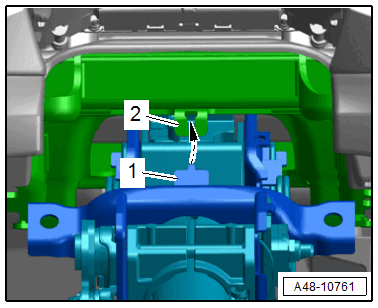

-- Bring the steering column into the installation position by engaging the mounting hooks -1- on the central tube -2- -arrow-.

-- Bring the bolt -2- with the anti-theft protection component lower section -1- into the installation position.

Courtesy of AUDI OF AMERICA, LLC

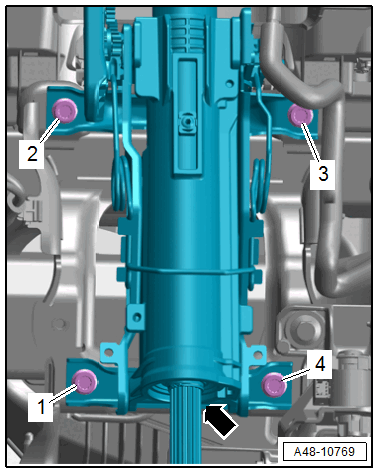

-- Tighten the bolts. Refer to Figure.

-- Drive the anti-theft protection component upper section -3- flush into the lower section using a plastic mallet.

-- Install the steering intermediate shaft. Refer to STEERING INTERMEDIATE SHAFT, REMOVING AND INSTALLING .

-- Install the steering column switch module. Refer to STEERING COLUMN SWITCH MODULE, REMOVING AND INSTALLING .

-- Install the driver side footwell vent. Refer to DRIVER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .

-- Install the driver side instrument panel cover. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

Readapting the end position of the steering gear. Refer to STEERING GEAR END POSITIONS, ADAPTING .
Calibrate the Steering Angle Sensor -G85-. Refer to Steering Angle Sensor -G85- BASIC SETTING .
