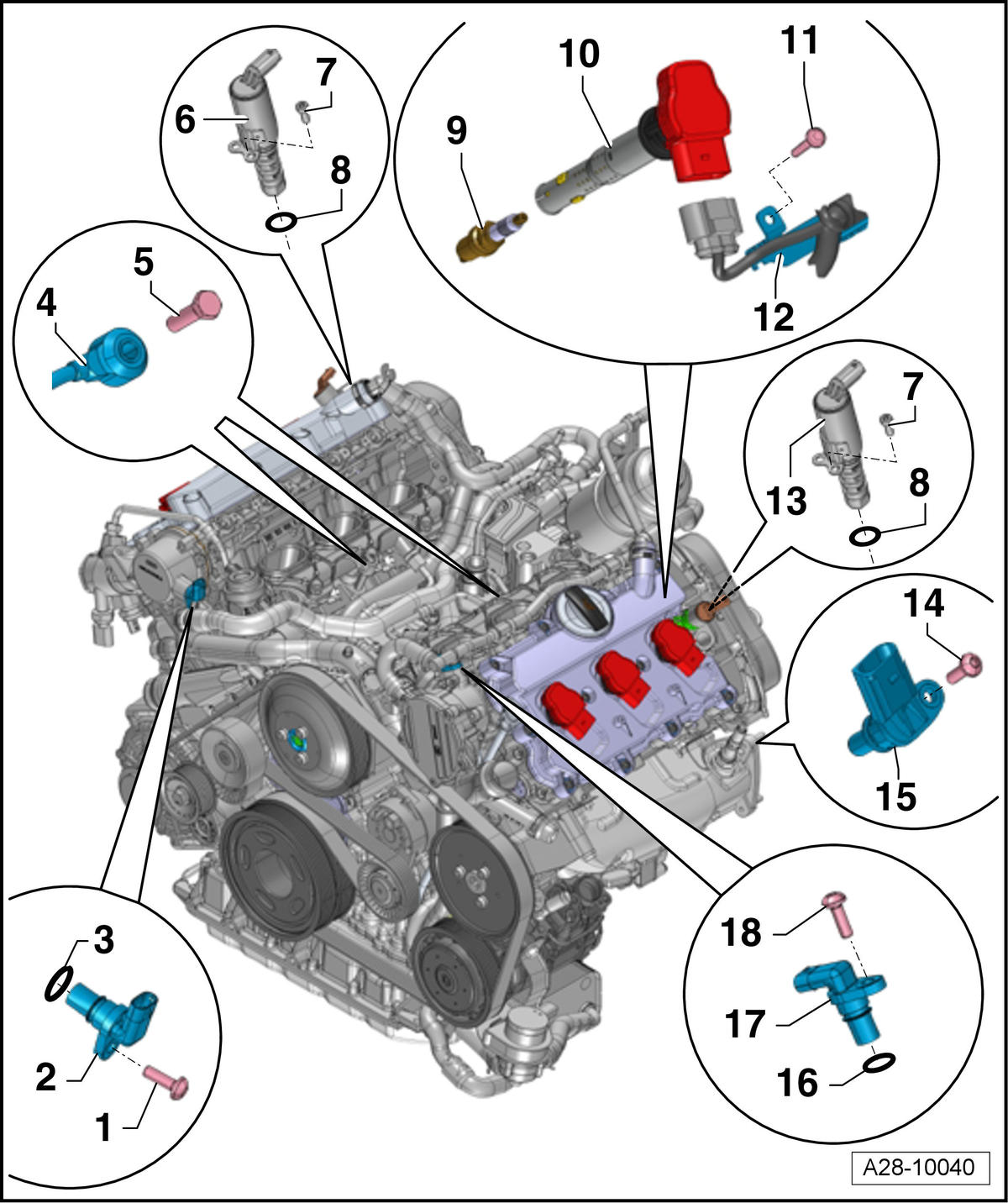

Ignition Overview
WARNING: This page is about a different car, the 2012 Audi S5, 2011 Audi S5, and 2010 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 9 Nm
- Camshaft Position (CMP) Sensor -G40-
- Removing and installing, refer to CAMSHAFT POSITION SENSOR -G40- / CAMSHAFT POSITION SENSOR 2 -G163-
- O-ring
- Replace
- Knock Sensor (KS)
- KS 1 -G61- (cylinder bank 1), KS 2 -G66- (cylinder bank 2)
- Removing and installing, refer to KNOCK SENSOR -G61- / KNOCK SENSOR -G66-
- Bolt
- 20 Nm
- Tightening specification affects the functionality of the knock sensors
- Camshaft Adjustment Valve 1 -N205-
- Bolt
- 5 Nm
- O-ring
- Replace
- Spark Plug
- Change interval.
- Tightening specification.
- Ignition Coil
- Removing and installing, refer to IGNITION COILS
- Bolt
- 5 Nm
- Wiring Harness
- Camshaft Adjustment Valve 2 -N208-
- Bolt
- 9 Nm
- Engine Speed (RPM) Sensor -G28-
- Removing and installing, refer to ENGINE SPEED SENSOR -G28-
- O-ring
- Replace
- Camshaft Position (CMP) Sensor 2 -G163-
- Removing and installing. CAMSHAFT POSITION SENSOR -G40- / CAMSHAFT POSITION SENSOR 2 -G163-
- Bolt
- 9 Nm
