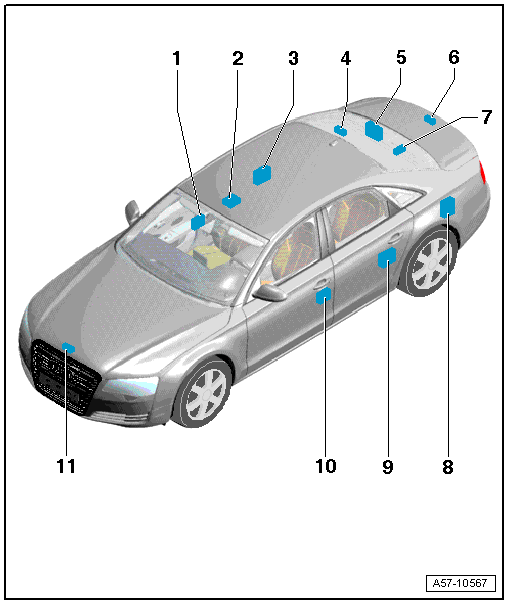

Overview - Central Locking
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
- Front Passenger Door Control Module -J387-
- Removing and installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
- Anti-Theft Alarm System Sensor -G578-
- Right Rear Door Control Module -J389-
- Removing and installing. Refer to Left Rear Door Control Module -J388- AND Right Rear Door Control Module -J389-, REMOVING AND INSTALLING .
- Fuel Filler Door Unlock -V 155-
- Removing and installing. Refer to Fuel Filler Door Unlock Motor -V155-, REMOVING AND INSTALLING .
- Comfort System Central Control Module -J393-
- Removing and installing. Refer to Comfort System Central Control Module -J393-, REMOVING AND INSTALLING .
- Rear Lid Unlock Motor -V139-
- Vehicle Positioning System Interface Control Module -J843-
- Removing and installing. Refer to Vehicle Positioning System Interface Control Module -J843-, REMOVING AND INSTALLING .
- Rear Lid Control Module -J605-
- Removing and installing. Refer to Rear Lid Control Module -J605-, REMOVING AND INSTALLING .
- Left Rear Door Control Module -J388-
- Removing and installing. Refer to Left Rear Door Control Module -J388- AND Right Rear Door Control Module -J389-, REMOVING AND INSTALLING .
- Driver Door Control Module -J386-
- Removing and installing. Refer to Driver Door Control Module -J386- AND Front Passenger Door Control Module -J387-, REMOVING AND INSTALLING .
- Engine Hood Contact Switch -F266-
