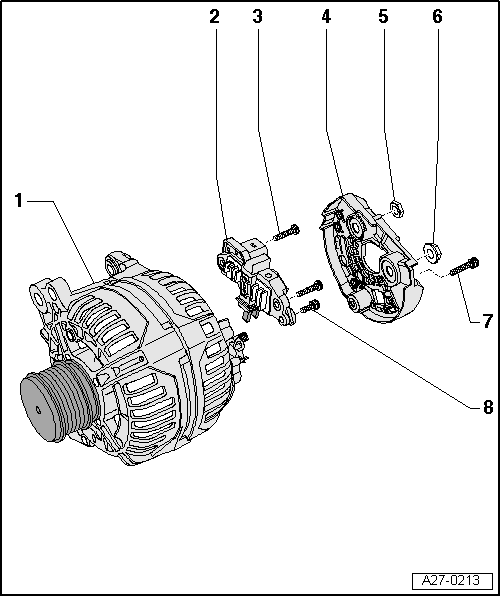

Overview - BOSCH Generator From 2001
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The generators were implemented as a running change.
- Generator
- Voltage Regulator
- Removing and installing. Refer to VOLTAGE REGULATOR, BOSCH GENERATOR FROM 2001, REMOVING AND INSTALLING .
- Carbon brushes, checking. Refer to CARBON BRUSHES, CHECKING, ALL BOSCH GENERATORS FROM 2001
- Bolt
- 2.5 Nm
- Cover
- Nut
- 12 Nm
- Nut
- 30 Nm
- Bolt
- 3 Nm
- Bolt
- 1.5 Nm
