Left Peripheral Camera -R244- /Right Peripheral Camera -R245-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the mirror cap. Refer to EXTERIOR REARVIEW MIRROR, REMOVING AND INSTALLING .

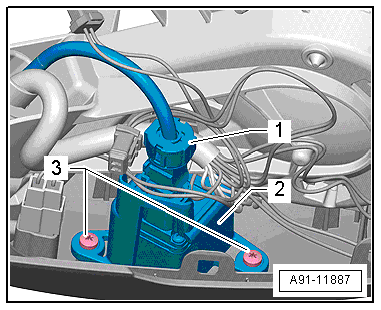

-- Release and disconnect the connector -1- from the Left Peripheral Camera -R244- -2-.
-- Remove the bolts -3- and then remove the Left Peripheral Camera -R244- -2-.
