Overview - Center Console, Front Center Console: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

Support with Attachments

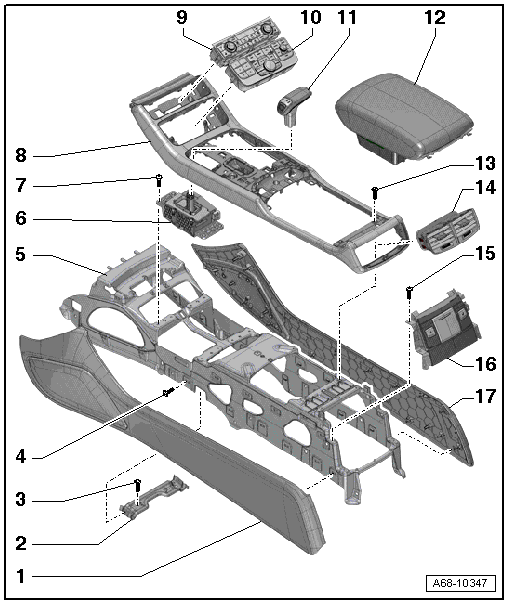

Fig 1: Exploded View Of Front Center Console

Courtesy of AUDI OF AMERICA, LLC

Side Trim Panel
- Replace damaged or deformed retaining clips
- For the center console
- Vehicle versions
- Removing and installing, refer to FRONT FOOTWELL CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING .
Bracket
- Quantity: 2
- For the center console
- Removing and installing, refer to CENTER CONSOLE BRACKET, FRONT CENTER CONSOLE, REMOVING AND INSTALLING .
Bolt
- 5 Nm
- Quantity: 4
- For bracket -2-
Bolt
- 4.3 Nm
- Quantity: 6
- Tightening sequence, refer to Installing - Tighten the bolts in the following sequence: -1, 2 and 3-.
Support
- For the center console
- Removing and installing, refer to CENTER CONSOLE SUPPORT, FRONT CENTER CONSOLE, REMOVING AND INSTALLING .
Selector Mechanism
- Removing and installing, refer to Selector Mechanism, Removing and Installing .
Bolt
- Tightening specification, refer to OVERVIEW - SELECTOR MECHANISM .
- Quantity: 4
Center Console
- Accessories, refer to Center Console with Attachments .
- Removing and installing, refer to CENTER CONSOLE, FRONT CENTER CONSOLE, REMOVING AND INSTALLING .
Climatronic Control Module -J255-
- Removing and installing, refer to Display and Control Head, Removing and Installing .
Multimedia System Control Head -E380-
- Removing and Installing, refer to MULTIMEDIA SYSTEM CONTROL HEAD -E380-, REMOVING AND INSTALLING .
Selector Lever Handle
- Removing and installing, refer to Selector Lever Handle, Removing and Installing .
Front Center Armrest
- Overview, refer to OVERVIEW - FRONT CENTER ARMREST ASSEMBLY .
Bolt
- Tightening specification, refer to -item ) Center Console with Attachments - List Item:Bolt.
- Quantity: 7
Rear Vent
- Replace damaged or deformed retaining clips
- Removing and installing, refer to CENTER CONSOLE, FRONT CENTER CONSOLE, REMOVING AND INSTALLING .
- Press into the installation opening as far as the stop.
Bolt
- Tightening specification, refer to -item ) Storage Compartment with Attachments - Vehicles with a Short Wheel Base - List Item:Bolt.
- Quantity: 4
Rear Storage Compartment
- Vehicles with the short wheel base
- Accessories, refer to Storage Compartment with Attachments - Vehicles with a Short Wheel Base .
- Removing and installing, refer to CENTER CONSOLE FRONT STORAGE COMPARTMENT, REMOVING AND INSTALLING .
Side Trim Panel
- Replace damaged or deformed retaining clips
- For the center console
- Vehicle versions
- Removing and installing, refer to FRONT FOOTWELL CENTER CONSOLE TRIM PANEL, REMOVING AND INSTALLING .
