Battery, Preparing For Charging

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

Procedure

WARNING:

Risk of explosion on discharged battery with "Visual indicator".

If the "Visual indicator" has no color or is light yellow, the battery may not be tested or charged. Jump starting must not be used! There is a risk of explosion during testing, charging or jump starting. The battery must be replaced.

Before the battery charger can be connected, the following preparations are necessary:

NOTE:

It is recommended that the battery is charged when installed and connected. This is the only way to ensure the charging current is incorporated into the capacity calculation for the Battery Monitoring Control Module -J367-.

-- Turn off the ignition and all electrical consumers.

-- Remove the key.

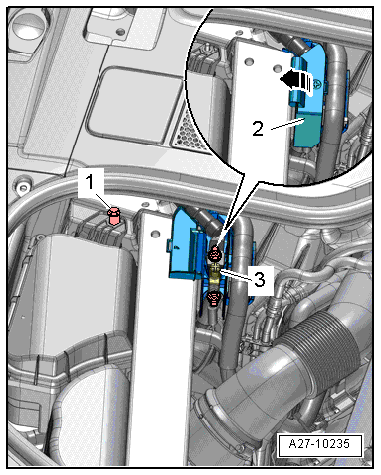

-- Unlock the cover -2- and swivel it to the side -arrow-.

Fig 1: Identifying Cover

Courtesy of AUDI OF AMERICA, LLC

-- Connect the red charging clamp "+" from the battery charger to the positive service terminal -3- and the black charging clamp "-" to the ground service terminal -1-.

-- Connect the battery charger electrical system connector and turn on the battery charger. Refer to Battery, Charging .

-- Leave the hood open while charging the battery.
