Oil Distribution
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
Transmission with Separated Oil System

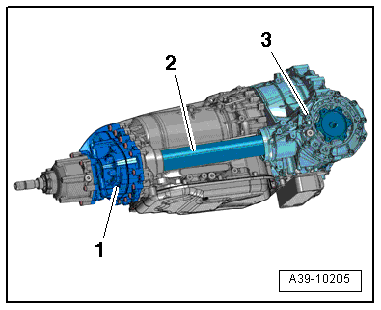

- The protective pipe -2- is free of oil, the transfer case -1- and the front final drive -3- as sealed with a shaft seal to side shaft.
- Allocation. Refer to TRANSMISSION-ENGINE ALLOCATION .
Transmission with Combined Oil System
- The oil chambers inside the front final drive -3- and inside the transfer case -1- are consolidated via the protective pipe -2-.
- The side shaft runs in gear oil in the protective pipe.
- Allocation. Refer to TRANSMISSION-ENGINE ALLOCATION
