Transmission Identification

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Audi S8, 2018 Audi A8 Quattro, 2017 Audi S8, 2017 Audi A8 Quattro, and 2016 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

Code Letters, Location on Transmission

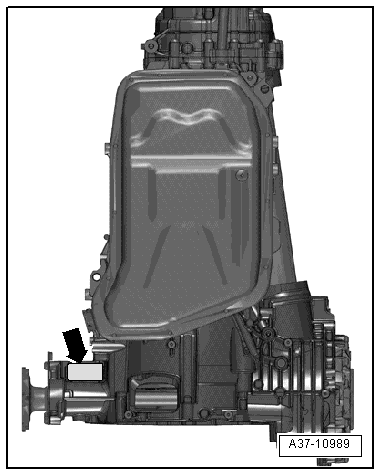

Fig 1: Code Letters, Location On Transmission

Courtesy of AUDI OF AMERICA, LLC

Transmission code letters are located on the data plate under the transmission. Type plate installed location -arrow-.

Transmission Code and Transmission Serial Number

Fig 2: Transmission Code and Serial Number

Courtesy of AUDI OF AMERICA, LLC

Example:

Transmission serial number
Parts list number
Manufacturer transmission identification: 8HP-55
Example of a transmission code: MNX

NOTE:

The transmission code letters are also included on the vehicle data labels.

Vehicle data label location. Refer to Vehicle Data Label.
