Rearview Camera -R189-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

The Rearview Camera -R189- has a trailing cable. The vehicle wiring harness couplings are located in the rear lid.

-- Remove The Rear Lid Trim Panel, refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

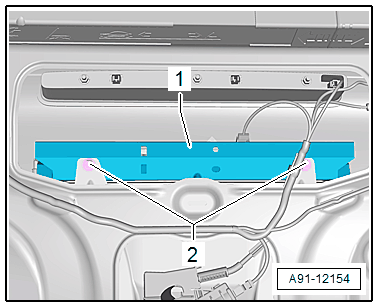

-- If equipped, remove the bolts -2- and the -1- and the anti-theft protection.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the retaining plate -2-.

The Rearview Camera -R189- is secured in the grip piece.

-- Remove the Rearview Camera -R189- from the grip piece with a suitable tool.

-- Unlock and disconnect the connectors -1- and -2- inside the rear lid.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
