Right FOOTWELL Vent Temperature Sensor -G262-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the lower instrument panel trim panel. Refer to Instrument Panel .
-- Disconnect the connector from the Right Footwell Vent Temperature Sensor -G262- -2-.
-- Turn the Right Footwell Vent Temperature Sensor -G262- -2- approximately 90° in direction of -arrow- and then remove it from the footwell vent -1-.

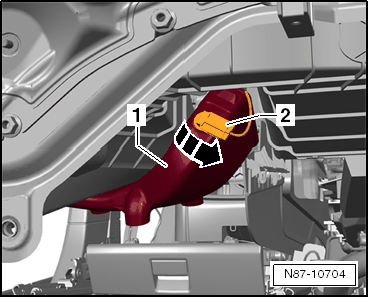

Fig 1: Turning Right Footwell Vent Temperature Sensor -2- ~90Degrees In -Direction Of Arrow- And Out Of Footwell Vent -1-
NOTE:
The Right Footwell Vent Temperature Sensor -G262- is located on the rear side of the footwell vent. To improve the clarity of the illustration, it is shown from a different view.
