Mount With Free-Running Hub On A/C Compressor, Removing And Installing: Removing

WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

-- Observe safety precautions when working on the high voltage system. Refer to HIGH VOLTAGE SYSTEM SAFETY PRECAUTIONS .

-- Pay attention to safety precautions for working near high voltage components. Refer to SAFETY PRECAUTIONS NEAR HIGH VOLTAGE COMPONENTS .

-- See notes. Refer to WORKING ON REFRIGERANT CIRCUIT .

-- Extract the refrigerant using the A/C Service Station, only then open the refrigerant circuit.

NOTE:

The tightening specification for bolts on the refrigerant lines to the Air Conditioning (A/C) compressor is 20 ± 3 Nm.

-- Remove the A/C compressor.

-- Secure the A/C compressor in a vise with claw protectors.

-- Remove the cap from the free-running hub.

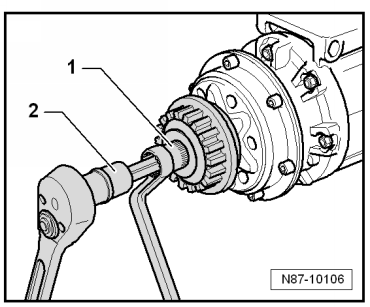

Fig 1: Identifying Multi-Point Adapter And Socket Insert In Compressor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the :3400 -1- into the A/C compressor free-running hub using a 17 mm wrench. Insert the M10 socket -2- into the A/C compressor shaft.

-- Turn the wrench to the left to loosen the threaded connection. Counterhold the reversible ratchet -2- at the same time.
