Section 147 (Occupant Detection System (Diagnostics)): Electrical Component Location: Location

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

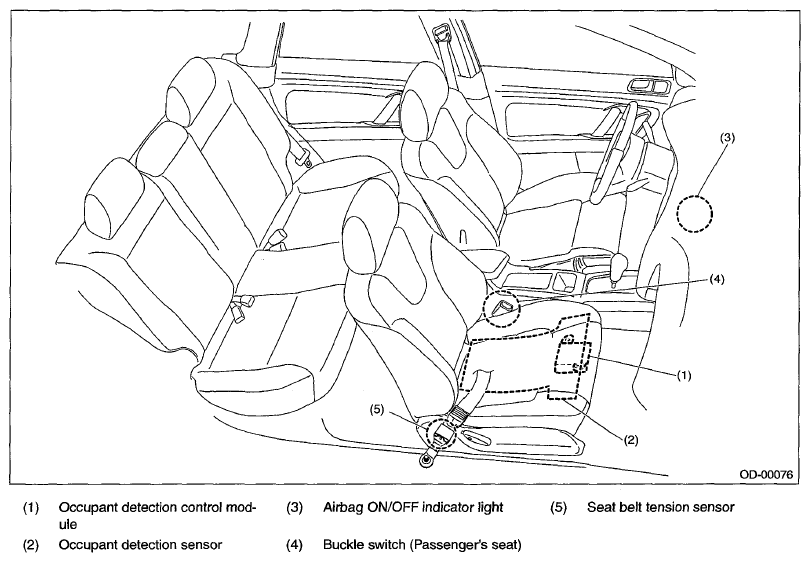

Fig 1: Identifying Occupant Detection System Components Location (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

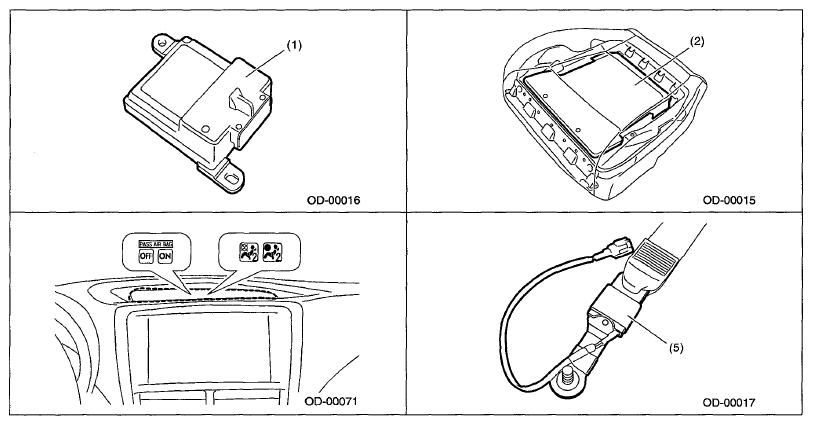

Fig 2: Identifying Occupant Detection System Components Location (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
