Overview - Rear Window Washer System
WARNING: This page is about a different car, the 2014 Volkswagen Touareg, 2013 Volkswagen Touareg, 2012 Volkswagen Touareg, and 2011 Volkswagen Touareg. However, it is still accessible from the selected car via links, so may be relevant.

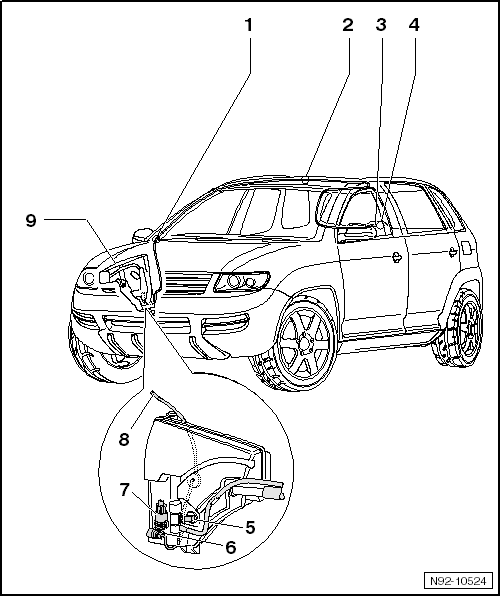

- Coupling
- Separating point between engine compartment wiring harness and roof wiring harness
- Overview of washer fluid hose couplings. Refer to WASHER FLUID LINE HOSE CONNECTIONS .
- Coupling
- Separating point between roof wiring harness and rear lid wiring harness
- Overview of washer fluid hose couplings. Refer to WASHER FLUID LINE HOSE CONNECTIONS .
- Coupling
- Connection to washer nozzle of rear window washer system
- Overview of washer fluid hose couplings. Refer to WASHER FLUID LINE HOSE CONNECTIONS .
- Washer Nozzle of Rear Window Washer System
- Replacing spray nozzle. Refer to SPRAY NOZZLE, REMOVING AND INSTALLING .
- Windshield Washer Fluid Level Sensor -G33-
- Removing and installing. Refer to Windshield Washer Fluid Level Sensor -G33-
- Angle Coupling
- Connection to windshield and rear window washer pump
- Overview of washer fluid hose couplings. Refer to WASHER FLUID LINE HOSE CONNECTIONS .
- Windshield and Rear Window Washer Pump -V59-
- Removing and installing. Refer to Windshield And Rear Window Washer Pump -V59-
- Checking. Refer to Vehicle Electrical System Control Module - J519-, OUTPUT DIAGNOSTIC TEST MODE .
- Hose
- Hose repair. Refer to HOSES, REPAIRING .
- Windshield Washer Fluid Reservoir
- Removing and installing. Refer to WINDSHIELD WASHER FLUID RESERVOIR, REMOVING AND INSTALLING
