Overview - Windshield: Notes

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

After replacing the windshield in vehicles with lane assist, the camera must be recalibrated. Refer to appropriate service information. .

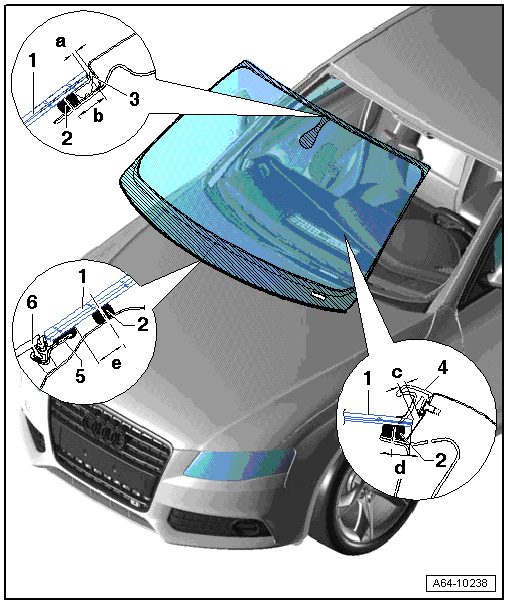

Fig 1: Windshield Overview

Courtesy of AUDI OF AMERICA, LLC

Windshield
- Distance to the roof, dimension -a- = 4.5 mm
- Align the side distance -c-.
Adhesive Bead
- Observe the minimum curing time. Refer to MINIMUM CURING TIME FOR BONDED WINDOWS .
  - Dimension -b- = 17 mm ^{± 2 mm}
  - Dimension -d- = 8 mm ^{± 2 mm}
  - Dimension -e- = 12 mm ^{± 2 mm}
Gap Cover
- No replacement part
  - When removing the window, the cutting wire must be pulled under the gap cover.
Drip Rail
Plenum Chamber Cover Frame
- No replacement part
- With a new window, protective piping must first be removed before installing plenum chamber cover.
Plenum Chamber Cover
- Press into retaining strip only after window adhesive minimum curing time is complete (3 hours).
