Third Row Single Seat Frame: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the third single row seat. Refer to: Third Row Seat .

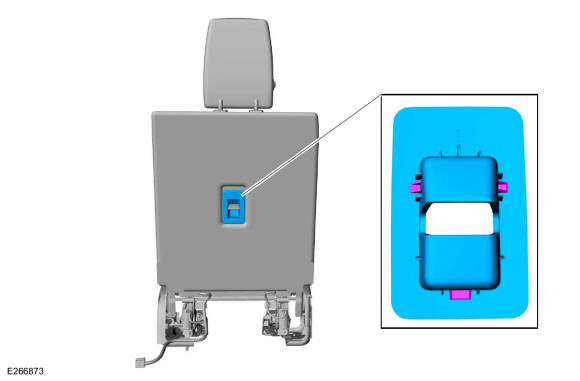

Remove the child safety seat tether anchor bezel.

Courtesy of FORD MOTOR COMPANY

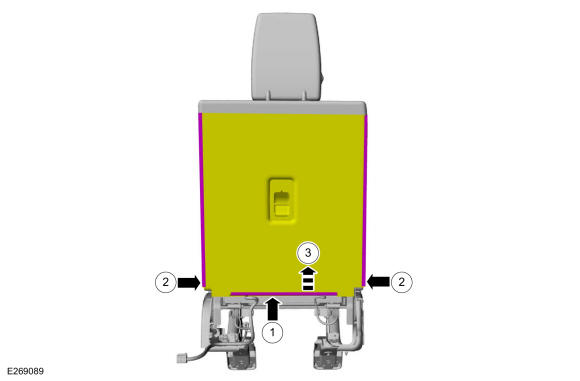

1. Release the third row single seat backrest cover J-clips.
2. Unzip the third row single seat backrest cover.
3. Position the third row single seat backrest cover flap aside.
Courtesy of FORD MOTOR COMPANY

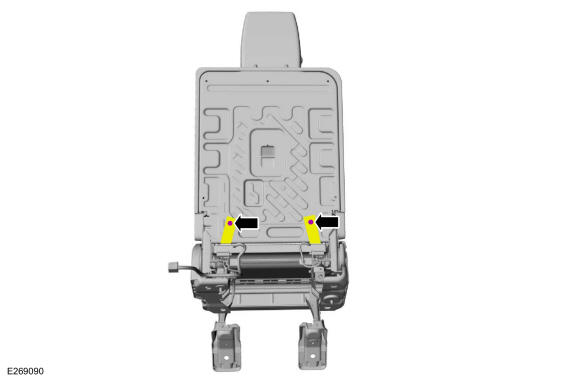

Remove the pin-type retainers and position the third row single seat backrest cover straps aside.

Courtesy of FORD MOTOR COMPANY
Lift the third row single seat backrest cover.

Courtesy of FORD MOTOR COMPANY

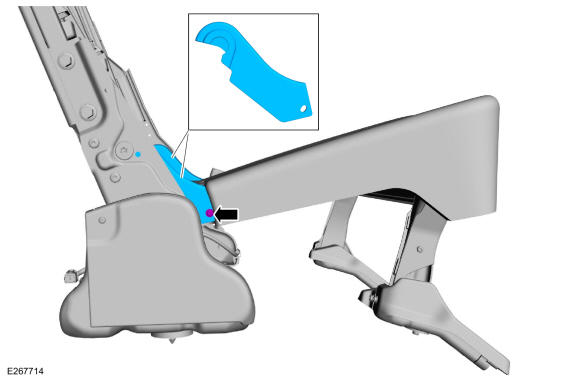

On both sides. Remove the screws and the third row single seat pivot arm covers.

Courtesy of FORD MOTOR COMPANY

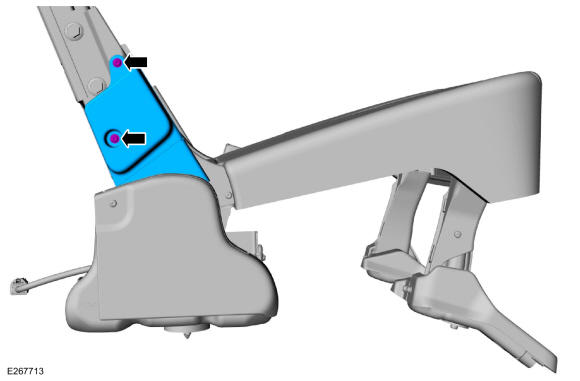

On both sides. Remove the screws and the third row single seat pivot arm covers.

Courtesy of FORD MOTOR COMPANY

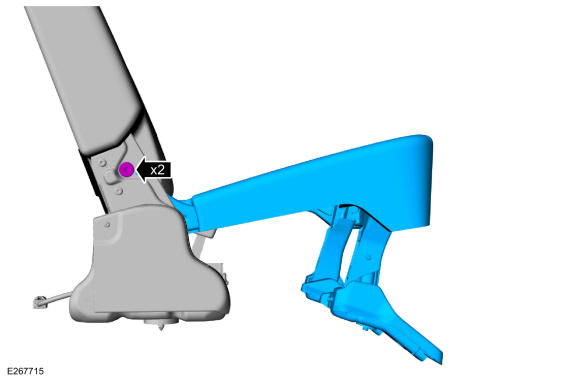

Remove the bolts and the third row single seat frame.
Torque: 33 lb.ft (45 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Remove the third row single seat cushion cover. Refer to:Third Row Single Seat Cushion Cover .
