Third Row Double Seat Frame: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the third double row seat. Refer to: Third Row Seat .

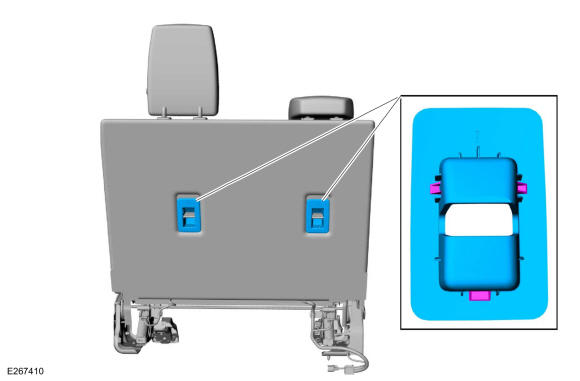

Remove the child safety seat tether anchor bezels.

Courtesy of FORD MOTOR COMPANY

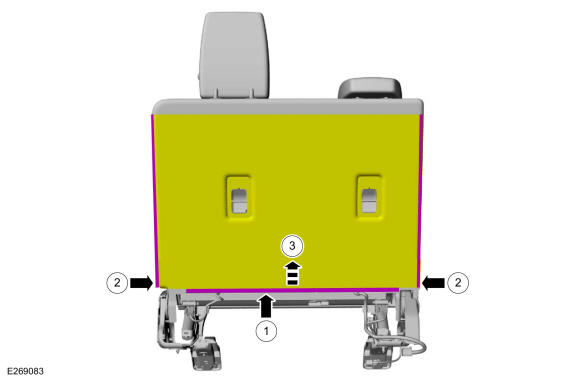

1. Release the third row double seat backrest cover the J-clip.
2. Unzip the third row double seat backrest cover.
3. Position the third row double seat backrest cover flap aside.
Courtesy of FORD MOTOR COMPANY

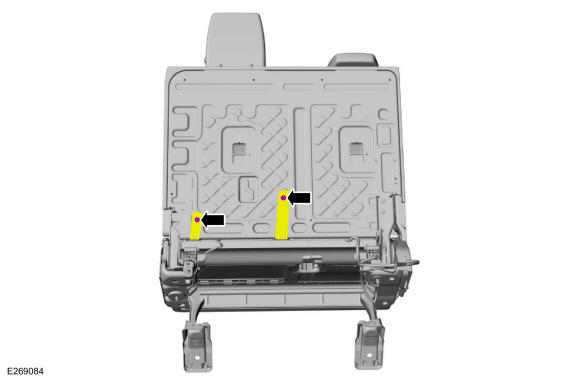

Remove the pin-type retainers and position the third row double seat backrest cover straps aside.

Courtesy of FORD MOTOR COMPANY
Lift the third row double seat backrest cover.

Courtesy of FORD MOTOR COMPANY

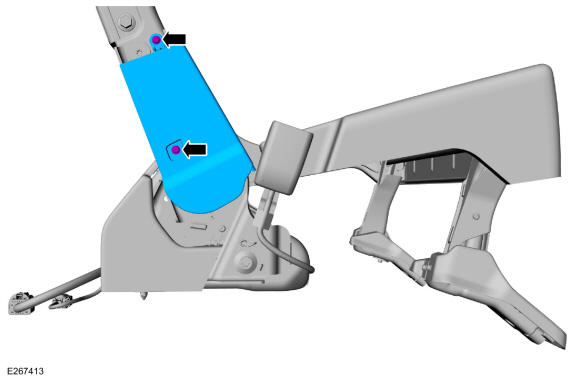

Remove the screws and the third row double seat RH side shield.

Courtesy of FORD MOTOR COMPANY

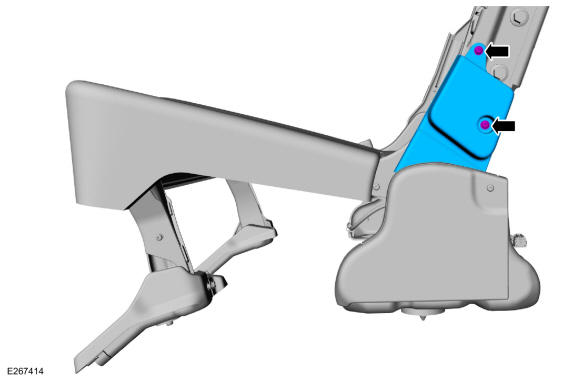

Remove the screws and the third row double seat LH side shield.

Courtesy of FORD MOTOR COMPANY

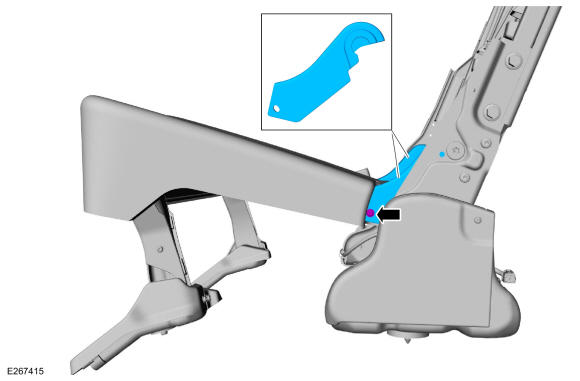

On both sides. Remove the screws and the third row double seat pivot arm covers.

Courtesy of FORD MOTOR COMPANY

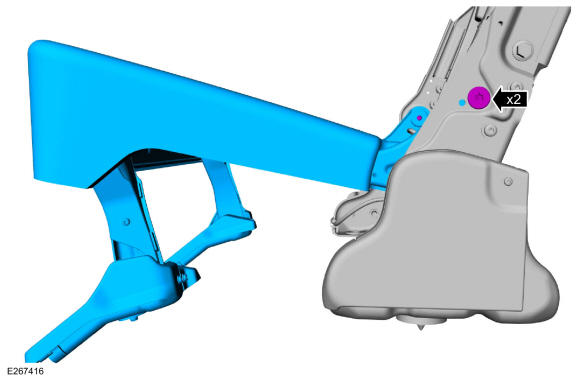

Remove the bolts and the third row double seat frame.
Torque: 33 lb.ft (45 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Remove the third row double seat cushion cover. Refer to: Third Row Double Seat Cushion Cover .
