Driver Multi-Contour Seat Module [SCMG]: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Drivers seat shown, passenger seat similar.

NOTE: This step is only necessary when installing a new component.

NOTE: The PMI process must begin with the current SCMG or SCMH installed. If the current SCMG or SCMH does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the SCMG or SCMH following the on-screen instructions.
Remove the front seat. Refer to: Front Seat .
Release the back panel straps from the seat track.

Courtesy of FORD MOTOR COMPANY
If equipped with video display.Remove the video display. Refer to: Video Display .
NOTE: The back panel finish can be easily marred or torn, use care when working around it.

Raise and partially separate the head restraint rear cover enough to disengage the clips from the back panel.Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

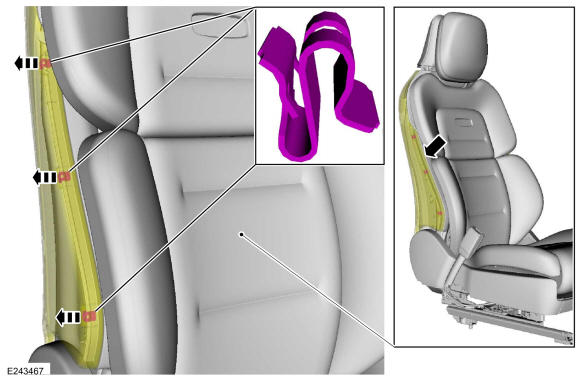

On both sides, grasp the back panel where it meets the module trim, pull to release the clips and separate the back panel from the module trim.

Courtesy of FORD MOTOR COMPANY
On both sides, using the interior trim remover, place it in between the plastic substrate and the clip, pry and detach the module clips from the back panel windows.Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

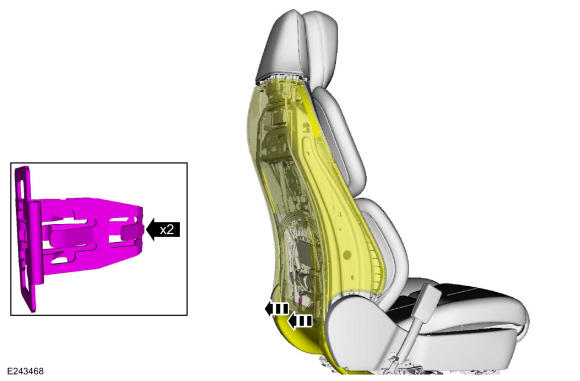

Pull out at the bottom, release the clips and detach the back panel from the backrest frame.

Courtesy of FORD MOTOR COMPANY
Pull out at the sides of the back panel.

Courtesy of FORD MOTOR COMPANY

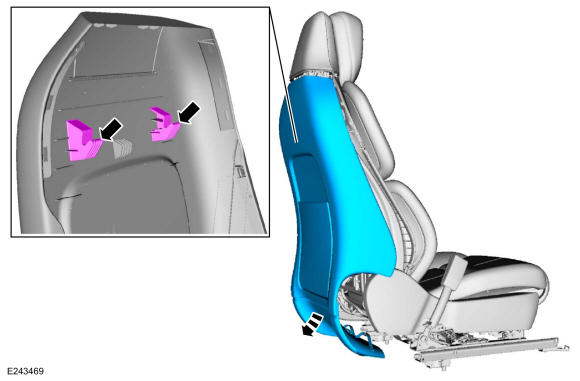

Pull down and out and remove the back panel.

Courtesy of FORD MOTOR COMPANY
NOTE: Follow the color codes of the hoses and locks as indicated below. Tube colors noted are from left to right.

NOTE: After disconnecting the hose and lock assemblies, verify the black O-ring and white spacer remains with each hose.

NOTE: When connecting the hose and lock assemblies, an audible click must be heard for correct installation.

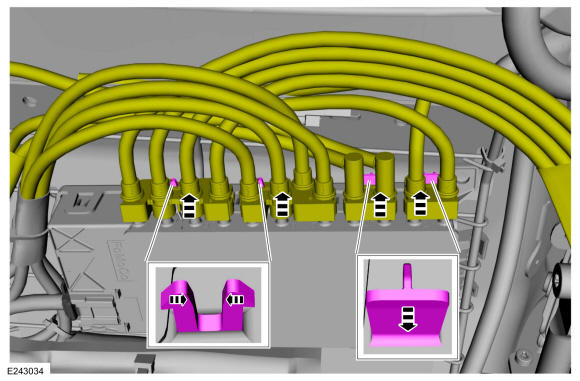

Release the locking tabs and disconnect the hose and lock assemblies from the SCMG.
- Red lock: black - transparent blue - blue - green.
- Blue lock: yellow - transparent green - red - clear.
- Green lock: transparent yellow - transparent magenta.
- Yellow lock: transparent orange - transparent red.
Courtesy of FORD MOTOR COMPANY

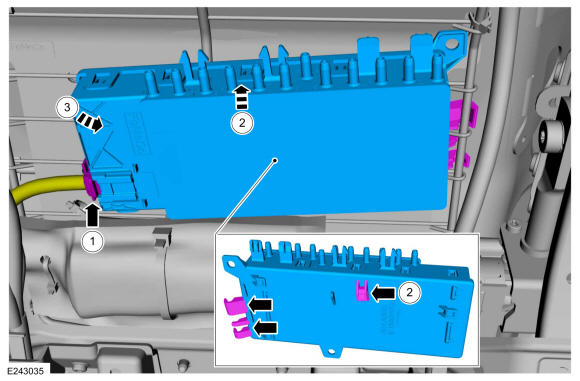

Remove the SCMG.
1. Disconnect the electrical connector.
2. Lift upwards on the SCMG to release the rear locking clip.
3. Rotate the SCMG to release the side locking clips.

Courtesy of FORD MOTOR COMPANY
