Engine Front Undershield
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE:

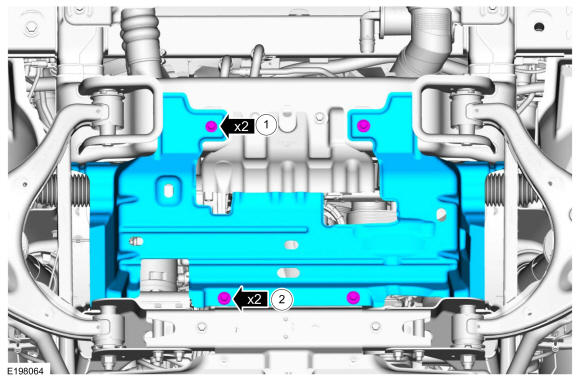

4X2 vehicle shown, 4X4 vehicle similar.
Remove the engine front undershield.
- Remove the bolts.
Torque: 30 lb.ft (40 Nm)
- Remove the bolts and the engine front undershield.
Torque: 71 lb.in (8 Nm)
 Courtesy of FORD MOTOR COMPANY
|
