Rear Door Module (RDM): Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is not necessary to upload the module configuration information to the diagnostic scan tool prior to removing the module. If the RDM is replaced with a part with the same suffix level, the DDM and PDM will automatically transfer the respective configuration to the new RDM upon first powering up.

Remove the rear door trim panel. Refer to: Rear Door Trim Panel .

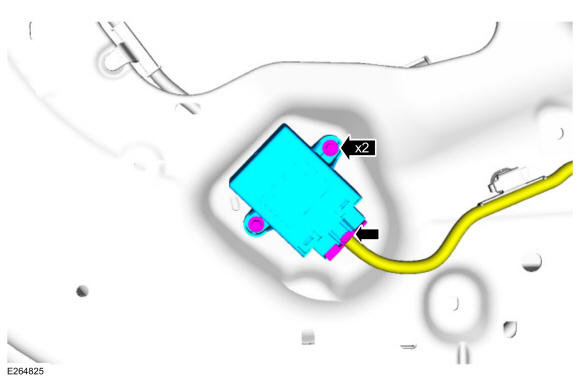

Remove the 2 retainers and the RDM.
- Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY
