Intrusion Sensor: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console. Refer to: Overhead Console .

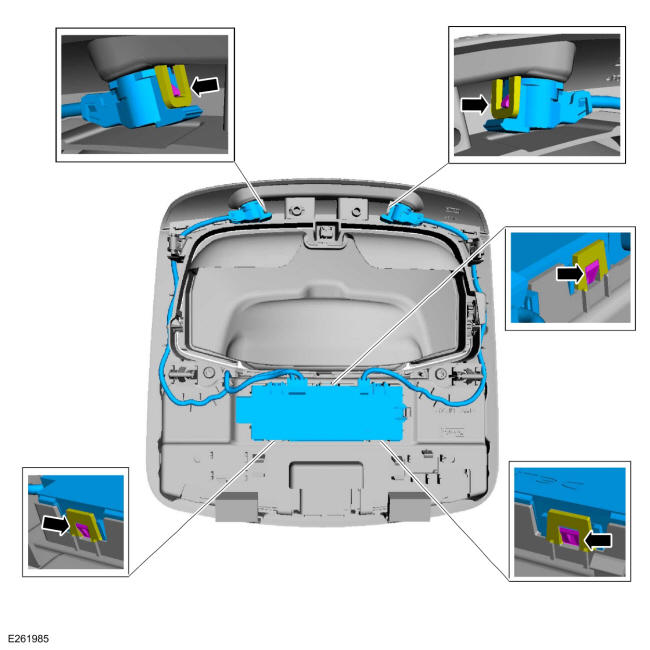

  2. Release the tabs and remove the intrusion sensor.
GFD274649Courtesy of FORD MOTOR COMPANY
