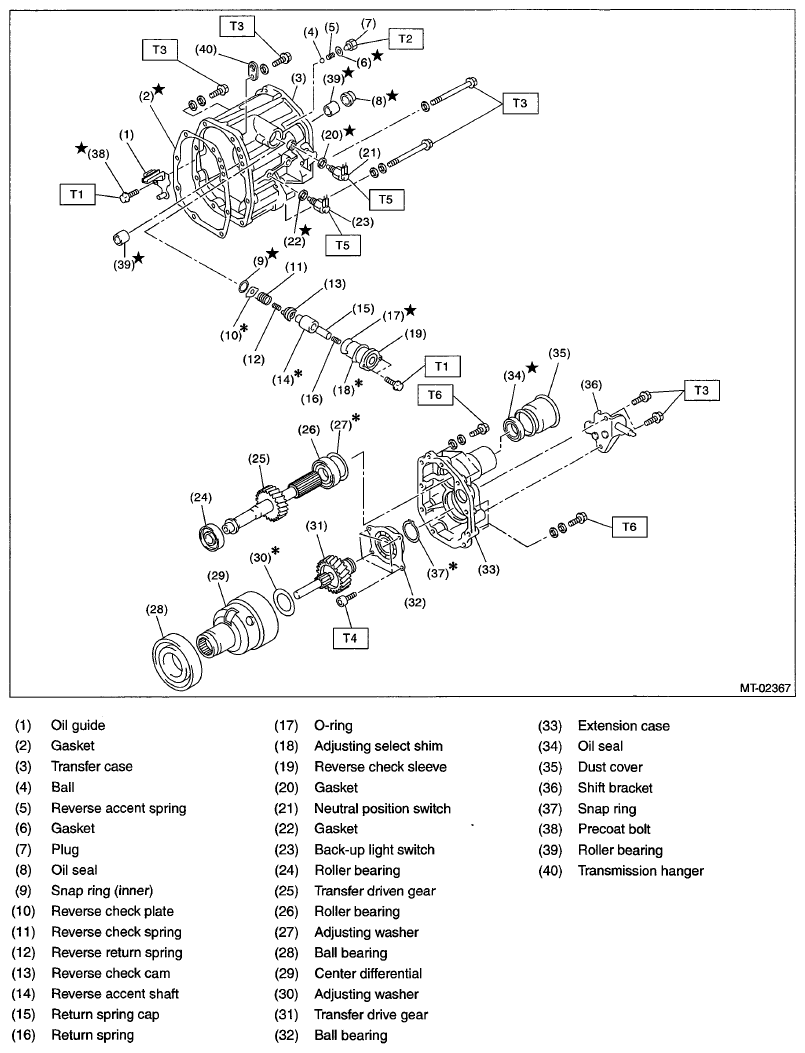

Transfer Case And Extension
WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 9.75 (1.0, 7.2)
T3: 24.5 (2.5, 18.1)
T4; 26 (2.7, 19.2)
T5: 32.3 (3.3, 23.8)
T6: 40 (4.1, 29.5)
