Differential Case Assembly

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the twelve bolts and remove hypoid driven gear.

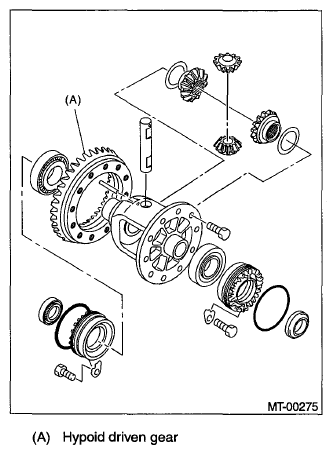

Fig 1: Exploded View Of Differential Case Assembly
Courtesy of SUBARU OF AMERICA, INC.
Drive out the straight pin from differential assembly toward hypoid driven gear side.
ST 899904100 STRAIGHT PIN REMOVER

Fig 2: Driving Out Straight Pin From Differential Assembly
Courtesy of SUBARU OF AMERICA, INC.
Pull out the pinion shaft, and remove the differential bevel pinion, differential bevel gear and washer.

Fig 3: Pinion Shaft, Differential Bevel Pinion, Differential Bevel Gear And Washer
Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the roller bearing.
ST 899524100 PULLER SET

Fig 4: Removing Roller Bearing Using ST
Courtesy of SUBARU OF AMERICA, INC.
