In-Vehicle Temperature and Humidity Sensor: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the FDIM. Refer to: Front Display Interface Module (FDIM) .
Remove the light assembly.
1. Release the clips and position the light assembly.
2. Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY
Remove the screws, disconnect the electrical connector and remove the transmission control switch assembly.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the RH instrument panel trim cover.

Courtesy of FORD MOTOR COMPANY

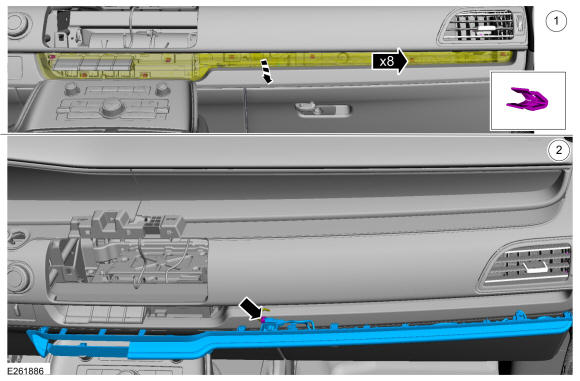

Release the clips and remove the RH trim cover.

Courtesy of FORD MOTOR COMPANY

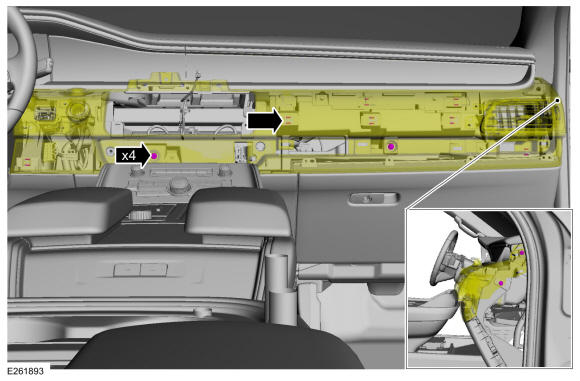

Remove the screws, separate the clips and position the center instrument panel trim panel forward.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

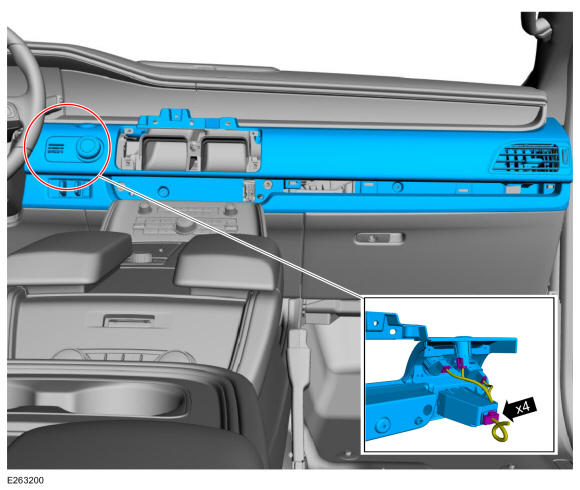

Disconnect the electrical connectors and remove the center instrument panel trim panel.

Courtesy of FORD MOTOR COMPANY

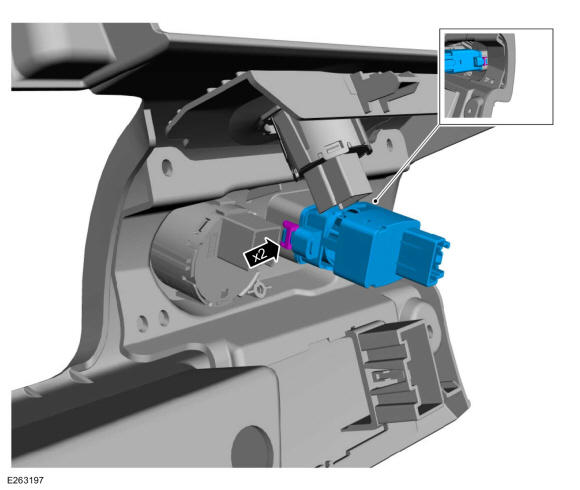

Remove the in-vehicle temperature and humidity sensor.

Courtesy of FORD MOTOR COMPANY
