Steering Column Multifunction Switch LH: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering column shrouds. Refer to: Steering Column Shrouds .
  2. If equipped. Remove the steering column control switch. Refer to: Steering Column Control Switch .
  3. NOTE: The LH steering column multifunction switch shown, RH similar.

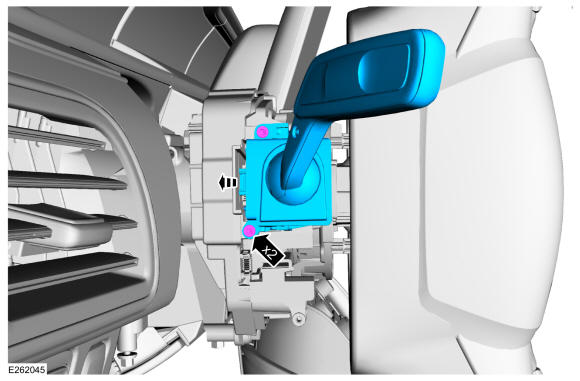

    Remove the screw(s) and the LH steering column multifunction switch.

GFD272153Courtesy of FORD MOTOR COMPANY
