Rear Wheel Speed Sensor: Removal

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the brake disc shield. Refer to:BRAKE DISC SHIELD .

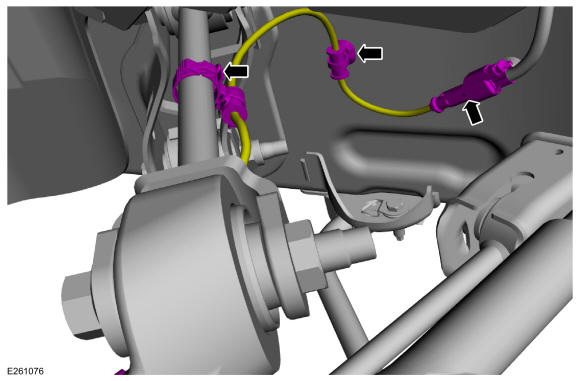

Disconnect the wheel speed sensor electrical connector and detach the retainers.

Courtesy of FORD MOTOR COMPANY

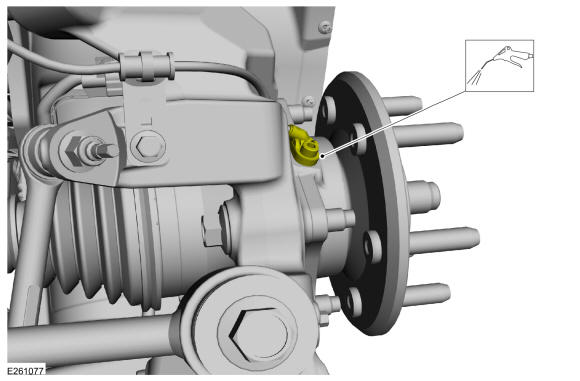

Using compressed air, clean the area surrounding the rear wheel speed sensor.

Courtesy of FORD MOTOR COMPANY

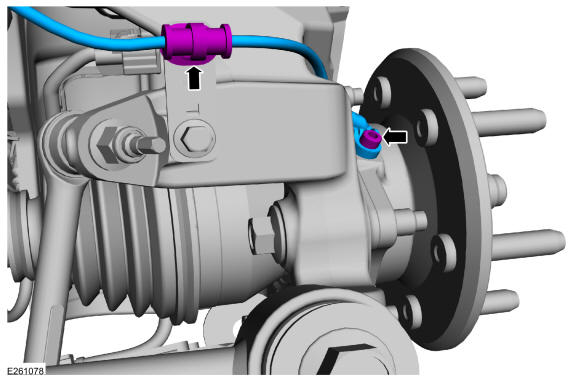

Detach the wiring retainer, remove the bolt and the rear wheel speed sensor.
Torque: 150 lb.in (17 Nm)

Courtesy of FORD MOTOR COMPANY
