Shock Absorber and Spring Assembly: Installation
WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

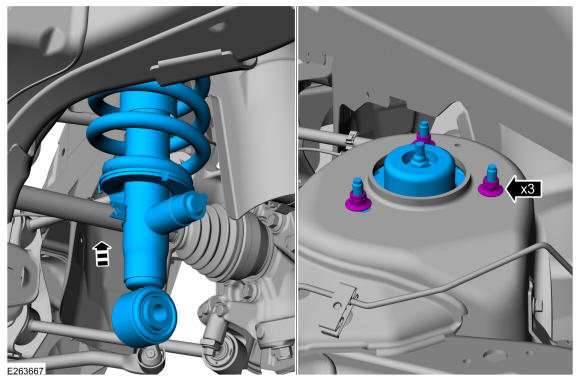

- Install the shock absorber and spring assembly, tighten the new shock absorber and spring assembly upper nuts.
Torque: 30 lb.ft (40 Nm)

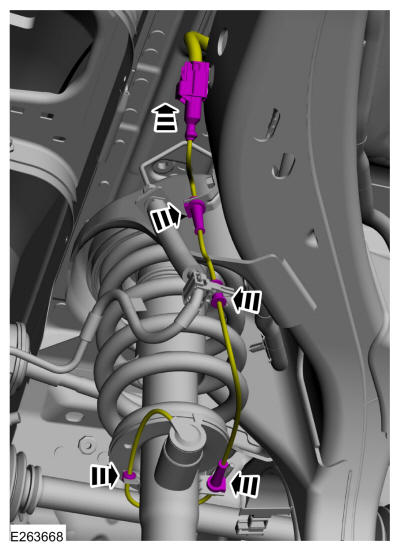

- If equipped. Install the Continuous Controlled Damping (CCD) shock absorber wire retainers and connect the Continuous Controlled Damping (CCD) shock absorber wire electrical connector.
- Install the lower arm. Refer to: Lower Arm .
