Component Testing: Relays

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

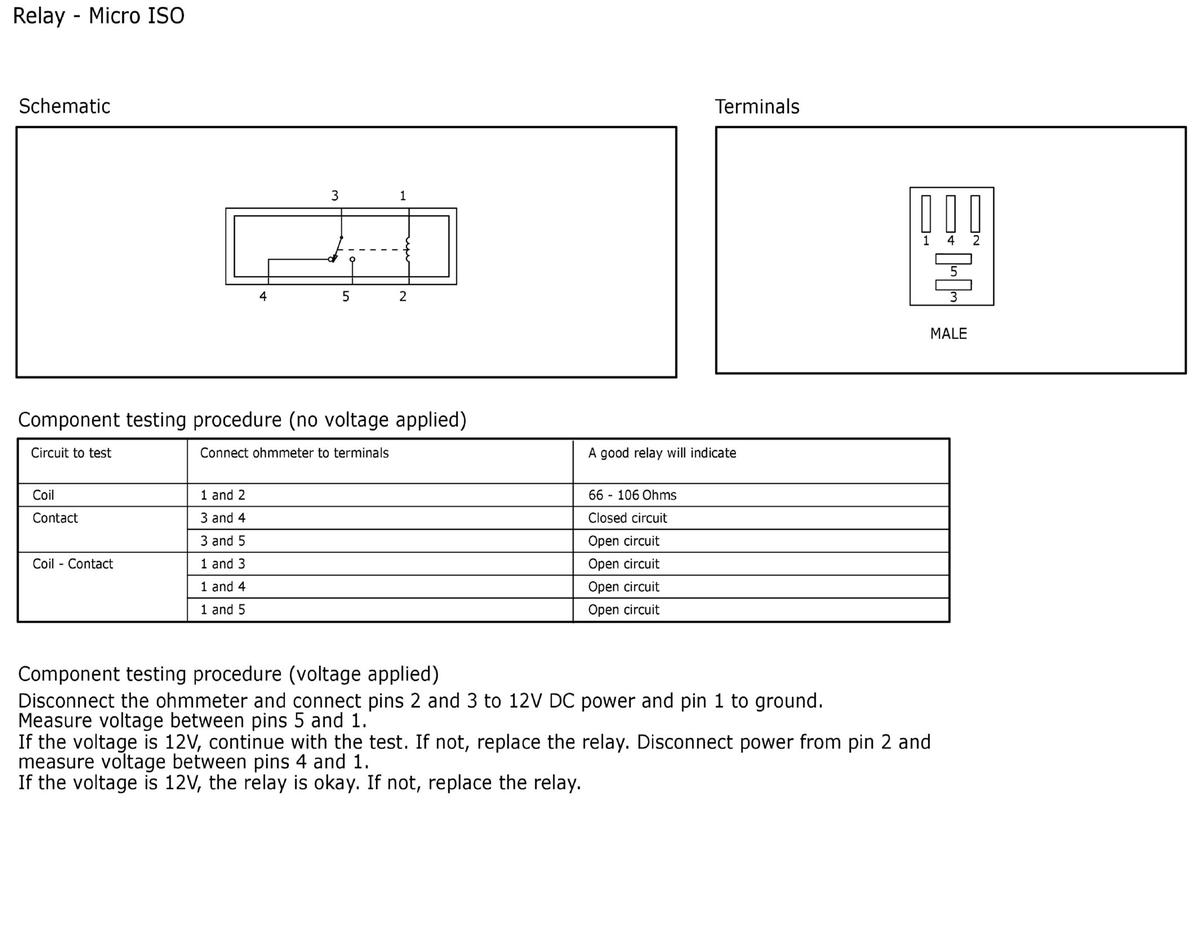

Fig 1: Relay - Micro ISO
GFDW102440Courtesy of FORD MOTOR COMPANY

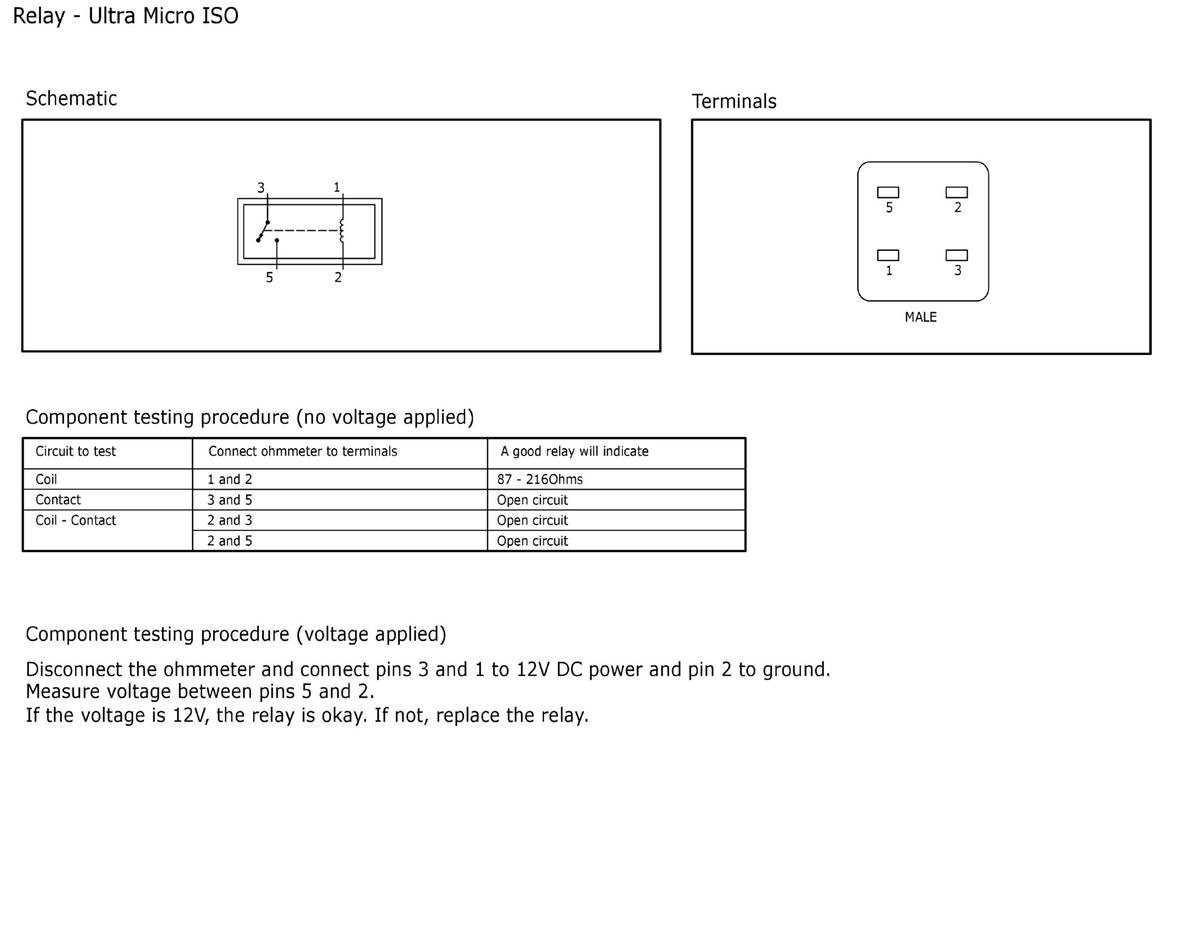

Fig 2: Relay - Ultra Micro ISO
GFDW102441Courtesy of FORD MOTOR COMPANY

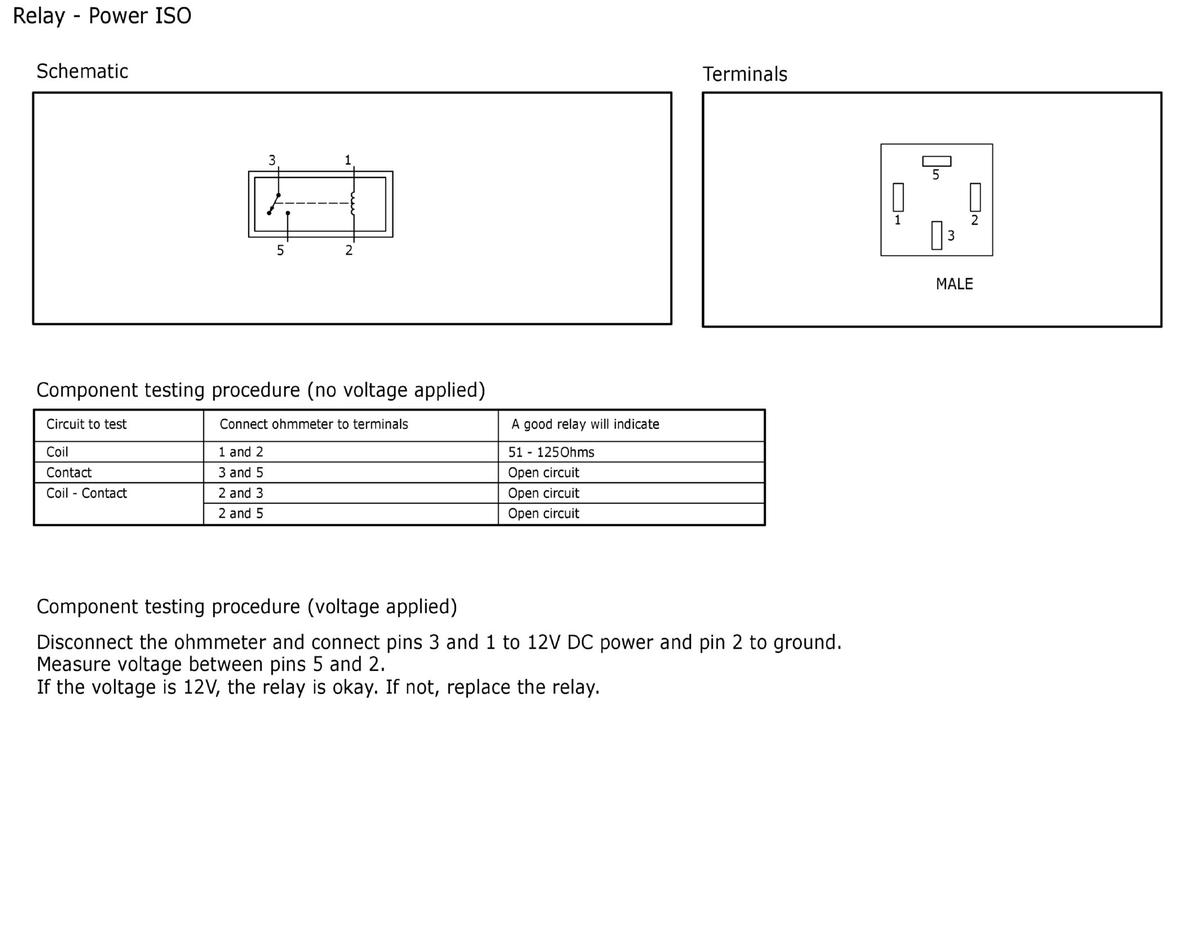

Fig 3: Relay - Power ISO
GFDW102442Courtesy of FORD MOTOR COMPANY
