Sedan Neutral Position: Checking
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
The Neutral Position Can Be Checked When The Sunroof Panel Is Installed.
-- Boot removed.
-- Drive back the sunroof panel and close again.
-- On vehicles with glass panel, slide sliding headliner completely toward rear.
-- Close the sliding sunroof.

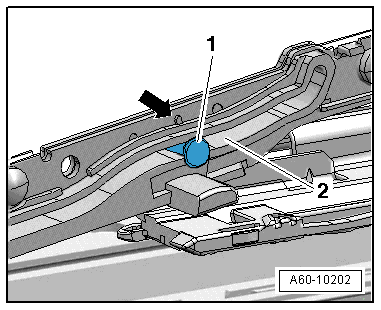

-- For a correct zero position, guide pins -1- in center on tilting mechanism must align with marking -arrow- on link guide -2-.
