Inspection Of Clearance
WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

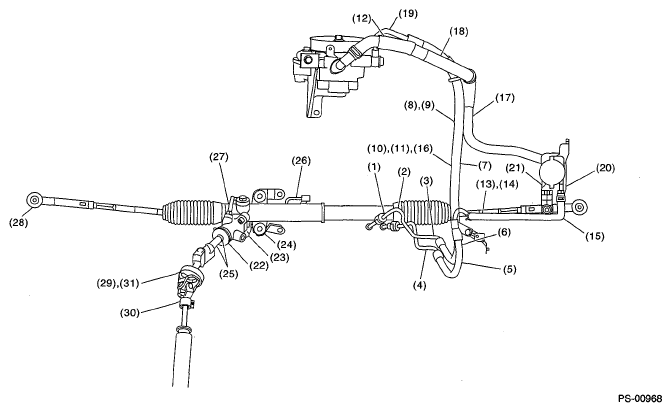

This table lists various clearances that must be correctly adjusted to ensure the normal vehicle driving without interfering noise, or any other faults.
CLEARANCE SPECIFICATION CHART
| Location | Minimum allowance mm (in) |
|---|---|
| (1) Crossmember to Hose ASSY | 3 (0.12) |
| (2) Front exhaust pipe to hose ASSY | 15 (0.59) |
| (3) Front frame side to Hose ASSY | 10 (0.39) |
| (4) Turbo cover to hose ASSY | 10 (0.39) |
| (5) Master cylinder to return hose | 10 (0.39) |
| (6) Master cylinder to hose clip | 10 (0.39) |
| (7) VDC H/U to hose ASSY | 5 (0.20) |
| (8) Air cleaner to hose ASSY | 5 (0.20) |
| (9) Air boot to Hose ASSY | 10 (0.39) |
| (10) Air cleaner hose to hose ASSY | 10 (0.39) |
| (11) Blow-by hose to hose ASSY | 8 (0.31) |
| (12) Over flow hose to hose ASSY | 8 (0.31) |
| (13) Brake pipe to return hose | 10 (0.39) |
| (14) Front suspension bracket to Return hose | 5 (0.20) |
| (15) Front wheel apron to Return hose | 5 (0.20) |
| (16) VDC H/U bracket to suction hose | 5 (0.20) |
| (17) Air cleaner case to Suction hose | 5 (0.20) |
| (18) Air intake duct to suction hose | 10 (0.39) |
| (19) Air duct to suction hose | 10 (0.39) |
| (20) Front wheel apron to Reservoir tank | 5 (0.20) |
| (21) VDC H/U to reserve tank | 5 (0.20) |
| (22) Valve housing to DOJ (5MT model) | 12 (0.47) |
| (23) Valve housing to Crossmember (Hole) | 1 (0.04) |
| (24) Cannon mount to crossmember | There must be no contact |
| (25) Pipe to crossmember | 5 (0.20) |
| (26) Pipe to stabilizer | 15 (0.59) |
| (27) Pipe to exhaust pipe | 18 (0.71) |
| (28) Tie-rod end to brake dust cover | 2.5 (0.10) |
| (29) Universal joint coupling to turbo cover | 15 (0.59) |
| (30) Universal joint column side yoke to Master cylinder (Closest point of approach when the universal joint turns by 360°) | 5 (0.20) |
| (31) Universal joint coupling to ATF level gauge | 10 (0.39) |
