Fixed Glass

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

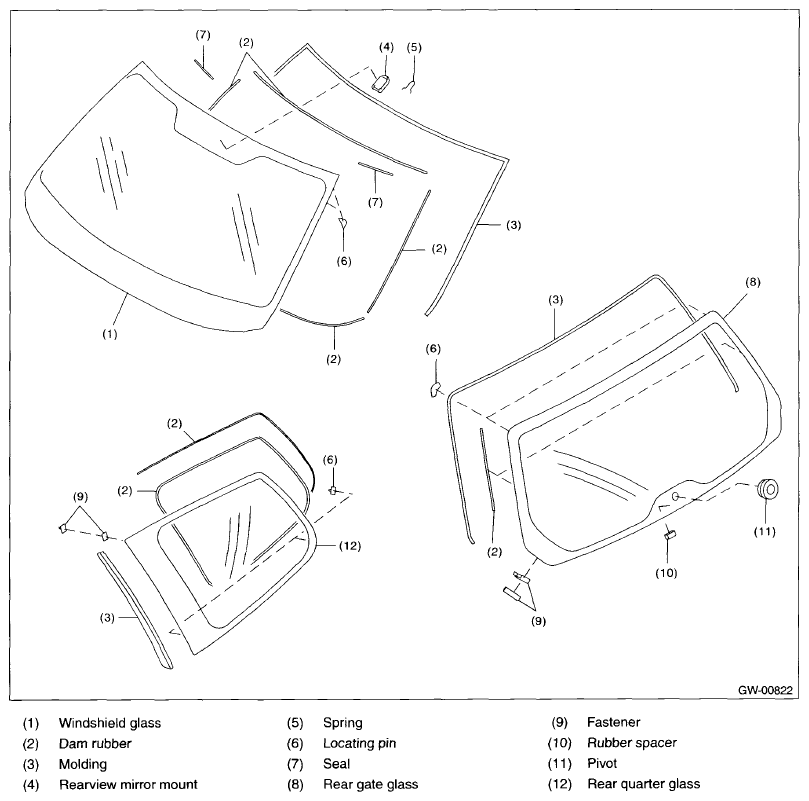

Fig 1: Fixed Glass And Components Location
G07680383Courtesy of SUBARU OF AMERICA, INC.
