Engine, Supporting In Installed Position: Notes
WARNING: This page is about a different car, the 2018 Audi S6, 2017 Audi S6, and 2016 Audi S6. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Engine Support Bridge :10-222A
- Engine Support Bridge - Spindle :10-222A/11
-- Remove the left and right foam block -arrow-.
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .
WARNING:
Fire hazards and risk of damage for a faulty engine cover.
- The engine cover must be always be installed before the hood is closed.
- The engine may neither be started nor driven without an engine cover.

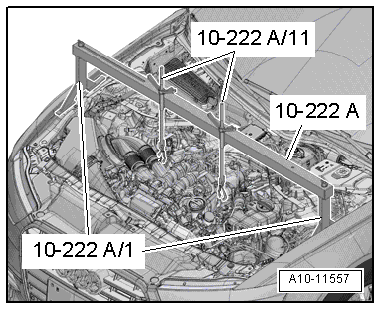

-- Position the :10-222A on the left and right suspension strut towers as illustrated.
-- Engage the :10-222A/11 in the left and right engine lifting eyes.
-- Lightly pretension engine with spindles.
