Electronic Steering Column Lock Control Module -J764-, REMOVING AND INSTALLING: Installing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal. Note the following:

If only the Electronic Steering Column Lock Control Module -J764- was replaced, use the previously used control module bolt.
If the steering column was replaced, remove the protective cover and use the bolt in the new steering column for the Electronic Steering Column Lock Control Module -J764-.

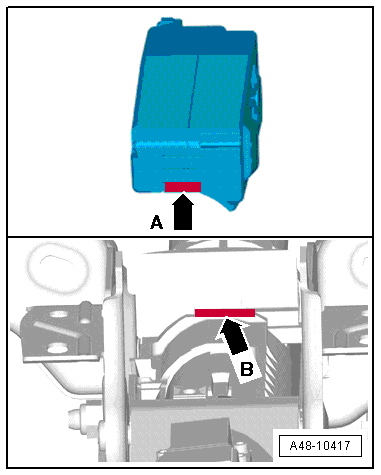

-- Insert the Electronic Steering Column Lock Control Module -J764- with the tab -arrow A- into the groove -arrow B- in the steering column and then push on the Electronic Steering Column Lock Control Module -J764- by hand.

Courtesy of AUDI OF AMERICA, LLC

-- Once the Electronic Steering Column Lock Control Module -J764- -2- is touching the entire surface of the steering column, install the bolt -1- and tighten it.

Courtesy of AUDI OF AMERICA, LLC

-- Install the steering column. Refer to STEERING COLUMN, REMOVING AND INSTALLING .

-- If the Steering Angle Sensor -G85- indicator lamp in the instrument cluster comes on, correct the fault and, if necessary, perform a basic setting on the dynamic steering. Refer to DYNAMIC STEERING BASIC SETTING .
