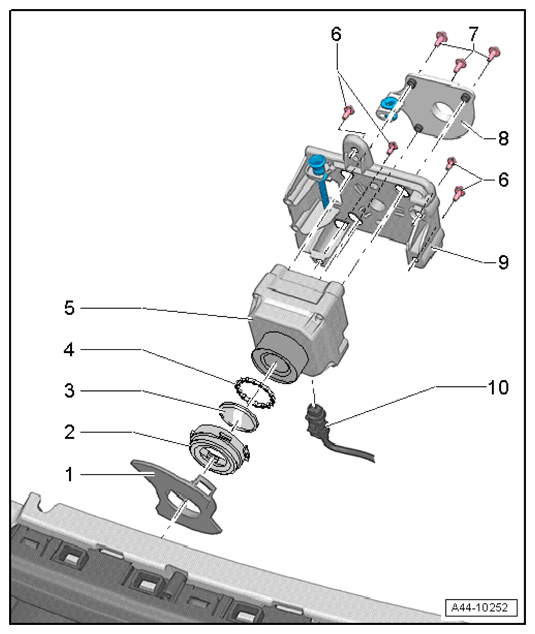

Overview - Night Vision System Camera - R212-
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Trim -->
- Cap
- With quick release
- Protective Window
- Removing and installing. Refer to Night Vision System Camera, Removing and Installing .
NOTE: If the protective window is no longer water tight due to damage, then the Night Vision System Camera - R212- must be Completely replaced. - Seal
- Always replace if removed
- Night Vision System Camera - R212-
- Bolt
- 6 Nm
- Quantity: 4
- Bolt
- 5 Nm
- Quantity: 3
- Retaining Plate
- Retaining Plate
- With adjusting screw and mount for the spray nozzle
- Connector
