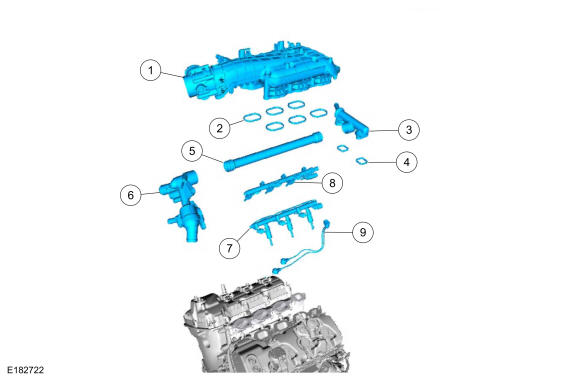

Engine Upper
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Part Number |
Description |
| 1 |
9424 |
Intake manifold |
| 2 |
9439 |
Intake manifold gasket |
| 3 |
8C368 |
Coolant crossover |
| 4 |
- |
Coolant crossover gasket (2 required) |
| 5 |
8A505 |
Thermostat housing inlet tube |
| 6 |
8592 |
Thermostat housing |
| 7 |
9D280 |
LH fuel rail |
| 8 |
9D280 |
RH fuel rail |
| 9 |
12A699 |
Knock Sensor (KS) |
