Reduction Driven Gear: Installation

WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Set the range select lever to the "P" range.
Using a plastic hammer, install the reduction driven gear assembly and the new washer, and tighten the drive pinion lock nut.
NOTE: Use a new washer and lock nut.

Tightening torque:

100 N.m (10.2 kgf-m, 73.8 ft-lb)

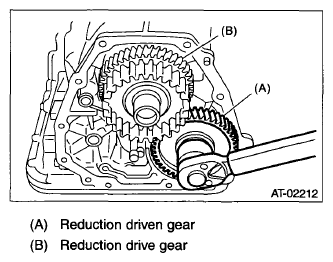

Fig 1: Tightening Drive Pinion Lock Nut
Courtesy of SUBARU OF AMERICA, INC.
After tightening, stake the lock nut securely.
Connect the transmission case with the extension case. < Ref. to INSTALLATION , Extension Case. >
Install the transmission assembly to the vehicle. < Ref. to INSTALLATION , Automatic Transmission Assembly. >
