Low/Reverse Clutch Assembly: Notes
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
Special Tool (s)
| Compressor, Clutch Spring 307-525 | |
| Depth Micrometer 303-D075 (D92P-4201-A) or equivalent | |
| Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C) or equivalent | |
| End Play Gauge, Clutch 307-555 | |
| Gauge, D-Clutch Measurement 307-554 |
Material
| Item | Specification |
| Motorcraft ® MERCON ® LV Automatic Transmission Fluid XT-10-QLVC (US); CXT-10-LV12 (Canada) | MERCON ® LV |

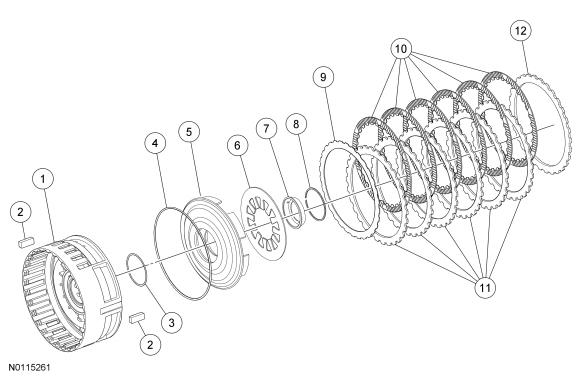

Low/Reverse Clutch Assembly
| Item | Part Number | Description |
|---|---|---|
| 1 | 7A130 | Intermediate/low/reverse clutch center support |
| 2 | 7B220 | Center support keys (2 required) |
| 3 | 7F225 | Low/reverse clutch piston center seal |
| 4 | 7D403 | Low/reverse clutch cylinder outer seal |
| 5 | 7A262 | Low/reverse clutch piston |
| 6 | 7B070 | Low/reverse clutch return spring |
| 7 | 7H318 | Low/reverse clutch return spring retainer |
| 8 | 7D483 | Low/reverse clutch return spring snap ring |
| 9 | 7E085 | Low/reverse clutch cushion spring |
| 10 | 7B164 | Low/reverse clutch internal splined friction plates (internally splined to the rear planetary carrier) |
| 11 | 7B442 | Low/reverse clutch external splined steel plates (externally splined to the case) |
| 12 | 7B066 | Low/reverse clutch pressure plate (externally splined to the case) (select fit) |
