Direct Clutch Assembly: Disassembly
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

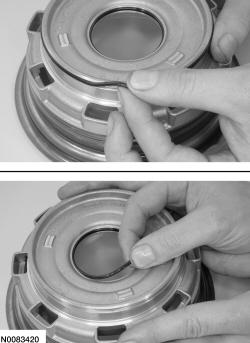

- 1.
Remove and discard the 2 scarf cut seals and the roller bearing.
 Courtesy of FORD MOTOR COMPANY
|
- 2.
Remove the T5 thrust bearing.
 Courtesy of FORD MOTOR COMPANY
|
- 3.
Remove the direct clutch snap ring.
 Courtesy of FORD MOTOR COMPANY
|
- 4.
Remove the direct clutch steel and friction plates.
 Courtesy of FORD MOTOR COMPANY
|
- 5.
Install the Clutch Spring Compressors onto the direct clutch assembly.
 Courtesy of FORD MOTOR COMPANY
|
- 6.
Using the Clutch Spring Compressors, compress the direct clutch return spring and remove the direct clutch return spring retainer.
 Courtesy of FORD MOTOR COMPANY
|
- 7.
Remove the balance piston.
 Courtesy of FORD MOTOR COMPANY
|
- 8.
Remove the direct clutch return spring.
 Courtesy of FORD MOTOR COMPANY
|
- 9.
Remove the direct clutch piston.
 Courtesy of FORD MOTOR COMPANY
|
- 10.
Remove and discard the outer O-ring seal from the balance piston.
 Courtesy of FORD MOTOR COMPANY
|
- 11.
Remove and discard the outer and inner O-ring seals from the apply piston.
 Courtesy of FORD MOTOR COMPANY
|
- 12.
Inspect the components of the direct clutch for damage. If damage is indicated, install new components as necessary.
