Selector Lever Knob: Installation
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
All vehicles
- 1.
Install the selector lever knob.
 Courtesy of FORD MOTOR COMPANY
|
- 2.
Connect the SelectShift ® switch and TC switch electrical connectors.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

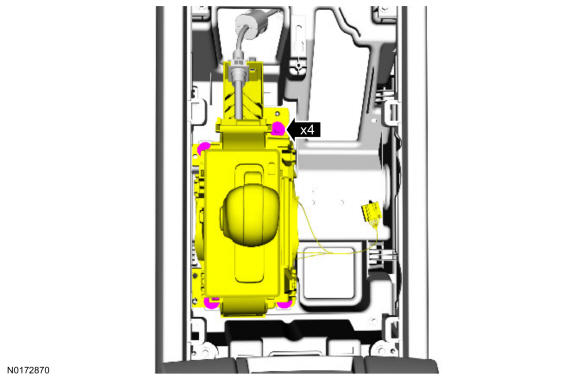

Position the selector lever and install the bolts.
- Tighten to 8 Nm (71 lb-in).
 Courtesy of FORD MOTOR COMPANY
|
- 4.

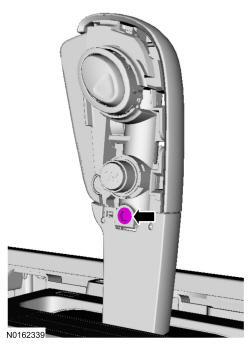

Install a new LH selector lever knob screw.
- Tighten to 2 Nm (18 lb-in).
 Courtesy of FORD MOTOR COMPANY
|
- 5.
Install a new RH selector lever knob screw.
- Tighten to 2 Nm (18 lb-in).
 Courtesy of FORD MOTOR COMPANY
|
- 6.
Install a new LH selector lever knob cover.
 Courtesy of FORD MOTOR COMPANY
|
- 7.
Install a new RH selector lever knob cover.
 Courtesy of FORD MOTOR COMPANY
|
Expedition
- 8.

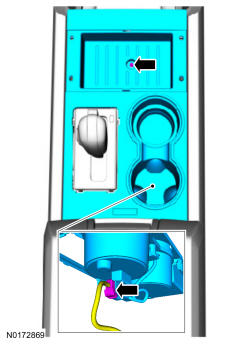

Connect the ambient light electrical connector and install the console upper trim and the screw.
 Courtesy of FORD MOTOR COMPANY
|
- 9.

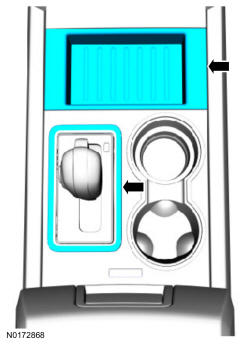

Install the selector lever trim ring and console tray insert.
 Courtesy of FORD MOTOR COMPANY
|
Navigator
- 10.

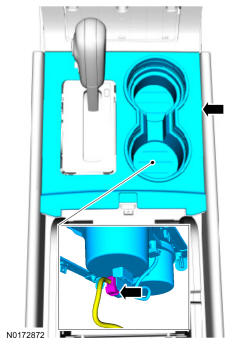

Connect the ambient light electrical connector and install the floor console upper panel.
 Courtesy of FORD MOTOR COMPANY
|
- 11.
Install the selector lever trim ring.
 Courtesy of FORD MOTOR COMPANY
|
