Section 100 (Clutch System): Flywheel: Removal
WARNING: This page is about a different car, the 2012 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the transmission assembly. < Ref. to
REMOVAL
, Manual Transmission Assembly . >
- Remove the clutch cover and clutch disc. < Ref. to
REMOVAL , Clutch Disc and Cover . >

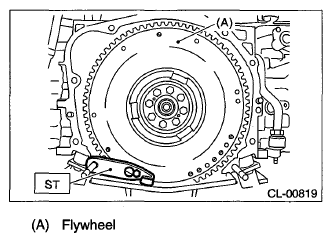

- Attach the ST.
ST 498497100 CRANKSHAFT STOPPER
Courtesy of SUBARU OF AMERICA, INC.
- Remove the flywheel and crankshaft position sensor plate.
