19.2 Overview - Parallel Parking Assistance

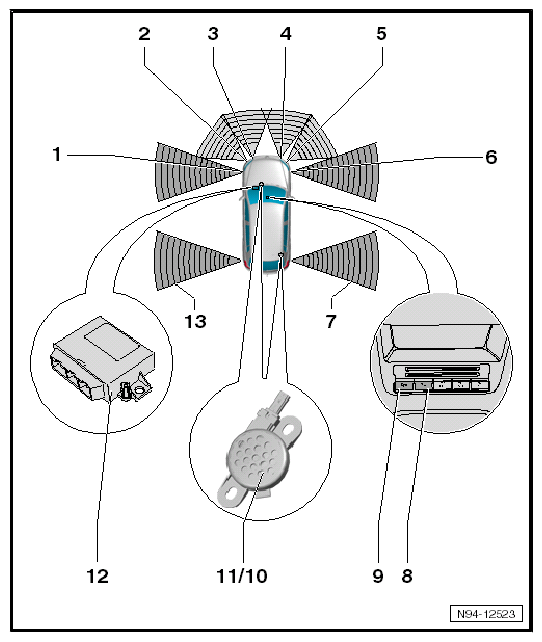

Left Front Parallel Parking Assistance Sensor - G568-

Component location: in the front bumper cover
Removing and installing. Refer to 19.4.1 Front Parking Aid or Parallel Parking Assistance Sensors, Removing and Installing . .
Checking. Refer to 19.4.3 Front Parking Aid or Parallel Parking Assistance Sensors, Checking . .
sensor, replacing. Refer to 19.4.2 Front Parking Aid or Parallel Parking Assistance Sensors, Replacing .

Sensor mount, replacing. Refer to 19.5 Front Parking Aid Sensor Mount and Front Parallel Parking Assist, Replacing .

G12412687

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Left Front Parking Aid Sensor - G255-
- Component location: in the front bumper cover
- Removing and installing. Refer to 19.4.1 Front Parking Aid or Parallel Parking Assistance Sensors, Removing and Installing . .
- Checking. Refer to 19.4.3 Front Parking Aid or Parallel Parking Assistance Sensors, Checking . .
- sensor, replacing. Refer to 19.4.2 Front Parking Aid or Parallel Parking Assistance Sensors, Replacing .
- Sensor mount, replacing. Refer to 19.5 Front Parking Aid Sensor Mount and Front Parallel Parking Assist, Replacing .
Left Front Center Parking Aid Sensor - G254-
- Component location: in the radiator grille
- Removing and installing. Refer to 19.4.1 Front Parking Aid or Parallel Parking Assistance Sensors, Removing and Installing . .
- Checking. Refer to 19.4.3 Front Parking Aid or Parallel Parking Assistance Sensors, Checking . .
- sensor, replacing. Refer to 19.4.2 Front Parking Aid or Parallel Parking Assistance Sensors, Replacing .
- Sensor mount, replacing. Refer to 19.5 Front Parking Aid Sensor Mount and Front Parallel Parking Assist, Replacing .
Right Front Center Parking Aid Sensor - G253-
- Component location: in the radiator grille
- Removing and installing. Refer to 19.4.1 Front Parking Aid or Parallel Parking Assistance Sensors, Removing and Installing . .
- Checking. Refer to 19.4.3 Front Parking Aid or Parallel Parking Assistance Sensors, Checking . .
- sensor, replacing. Refer to 19.4.2 Front Parking Aid or Parallel Parking Assistance Sensors, Replacing .
- Sensor mount, replacing. Refer to 19.5 Front Parking Aid Sensor Mount and Front Parallel Parking Assist, Replacing .
Right Front Parking Aid Sensor - G252-
- Component location: in the front bumper cover
- Removing and installing. Refer to 19.4.1 Front Parking Aid or Parallel Parking Assistance Sensors, Removing and Installing . .
- Checking. Refer to 19.4.3 Front Parking Aid or Parallel Parking Assistance Sensors, Checking . .
- Sensor, replacing. Refer to 19.4.2 Front Parking Aid or Parallel Parking Assistance Sensors, Replacing .
- Sensor mount, replacing. Refer to 19.5 Front Parking Aid Sensor Mount and Front Parallel Parking Assist, Replacing .
Right Front Parallel Parking Assistance Sensor - G569-
- Component location: in the front bumper cover
- Removing and installing. Refer to 19.4.1 Front Parking Aid or Parallel Parking Assistance Sensors, Removing and Installing . .
- Checking. Refer to 19.4.3 Front Parking Aid or Parallel Parking Assistance Sensors, Checking . .
- sensor, replacing. Refer to 19.4.2 Front Parking Aid or Parallel Parking Assistance Sensors, Replacing .
- Sensor mount, replacing. Refer to 19.5 Front Parking Aid Sensor Mount and Front Parallel Parking Assist, Replacing .
Right Rear Parallel Parking Assistance Sensor - G717-
- Component location: in the rear bumper cover
- Removing and installing. Refer to 19.6.1 Rear Parallel Parking Assist Sensors, Removing and Installing . .
- Checking. Refer to 19.6.3 Rear Parallel Parking Assist Sensors, Checking . .
- Sensor, replacing. Refer to 19.6.2 Parallel Parking Assistance Sensor, Replacing .
- Sensor mount, replacing. Refer to 19.7 Rear Parallel Parking Assist Sensor Mount, Replacing .
Front Parking Aid Button - E266-
- Component location: in the center console storage compartment in front of the selector lever
- Removing and installing. Refer to 18.5.1 FRONT PARKING AID BUTTON - E266-, REMOVING AND INSTALLING . .
- Checking. Refer to 18.5 FRONT PARKING AID BUTTON - E266 . .
Parallel Parking Assistance Button - E581-
- Component location: in the center console storage compartment in front of the selector lever
- Removing and installing. Refer to 19.8.1 Parallel Parking Assistance Button - E581-, Removing and Installing . .
- Checking. Refer to 19.8.2 Parallel Parking Assistance Button - E581-, Checking . .
Rear Parking Aid Warning Buzzer - H15-
- Component location: behind the right side wall trim in the luggage compartment
- Removing and installing. Refer to 19.9.6 Rear Parking Aid Warning Buzzer - H15-, Removing and Installing . .
- Volume, adjusting. Refer to 19.9.7 Rear Parking Aid Warning Buzzer - H15- Volume, Adjusting . .
- Tone, adjusting. Refer to 19.9.8 Rear Parking Aid Warning Buzzer - H15- Tone, Adjusting . .
Front Parking Aid Warning Buzzer - H22-
- Component location: in the driver footwell above the instrument panel relay panel on the left side
- Removing and installing. Refer to 19.9.2 Front Parking Aid Warning Buzzer - H22-, Removing and Installing . .
- Volume, adjusting. Refer to 19.9.4 Front Parking Aid Warning Buzzer - H22- Volume, Adjusting . .
- Tone, adjusting. Refer to 19.9.5 Front Parking Aid Warning Buzzer - H22- Tone, Adjusting . .
Parallel Parking Assistance Control Module - J791-
- Component location: in the driver footwell above the instrument panel relay panel on the left side
- Removing and installing. Refer to 19.3.1 Parallel Parking Assistance Control Module - J791-, Removing and Installing . .
- Coding. Refer to 19.3.3 Parallel Parking Assistance Control Module - J791-, Coding . .
- Bolt tightening specification: 5 Nm
Left Rear Parallel Parking Assistance Sensor - G716-
- Component location: in the rear bumper cover
- Removing and installing. Refer to 19.6.1 Rear Parallel Parking Assist Sensors, Removing and Installing . .
- Checking. Refer to 19.6.3 Rear Parallel Parking Assist Sensors, Checking . .
- Sensor, replacing. Refer to 19.6.2 Parallel Parking Assistance Sensor, Replacing .
- Sensor mount, replacing. Refer to 19.7 Rear Parallel Parking Assist Sensor Mount, Replacing .
