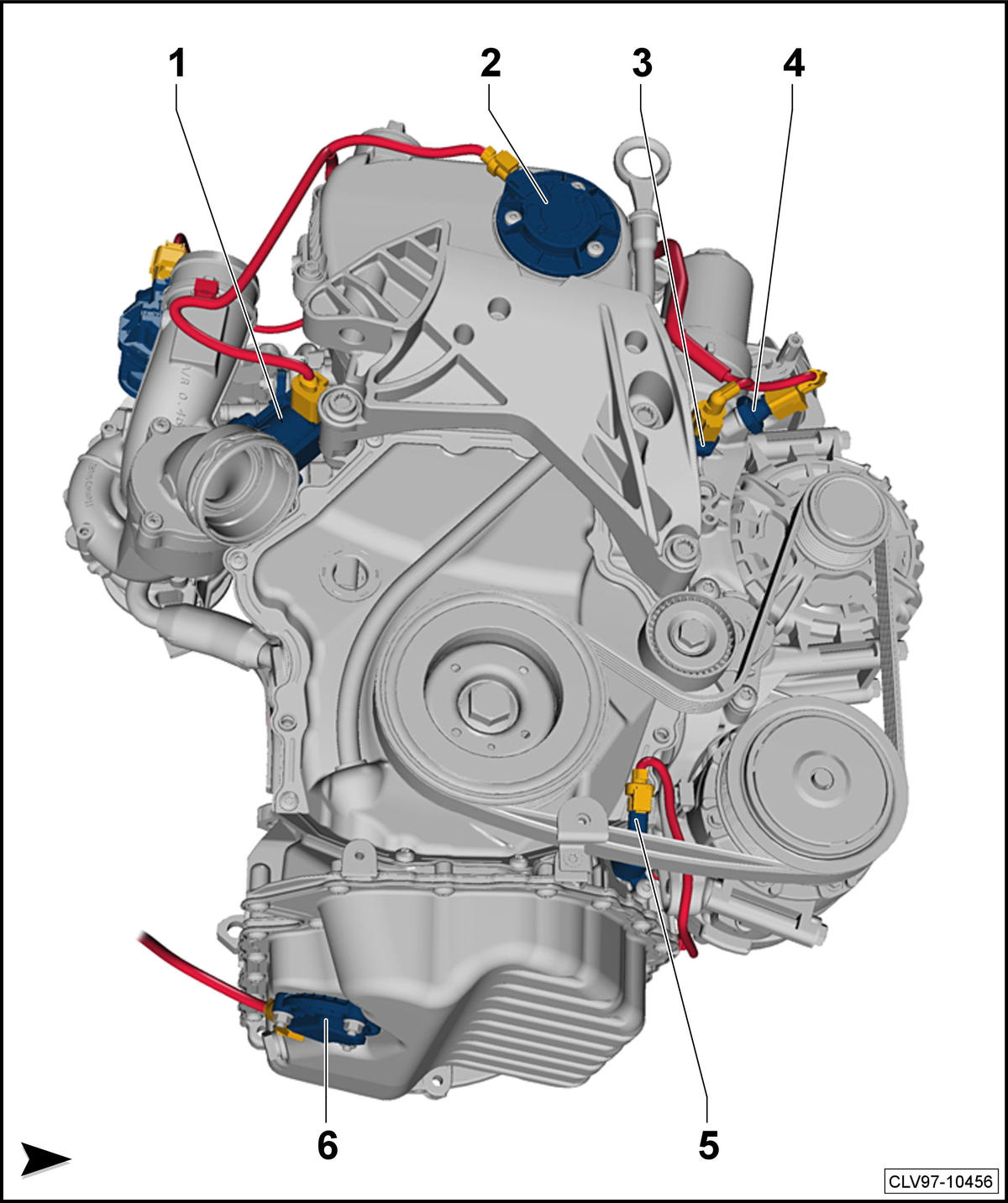

Engine from the Right

GWWCLV97-10456Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Turbocharger Recirculation Valve -N249-
  2. Camshaft Adjustment Valve 1 -N205-
  3. Oil Pressure Switch -F1-
  4. Reduced Oil Pressure Switch -F378-
  5. Oil Pressure Regulation Valve -N428-
  6. Oil Level Thermal Sensor -G266-
