Fuel Rail, Removing And Installing: Notes

• Intake manifold must be removed. For removing the intake manifold. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .

-- Disconnect the connector on the Fuel Pressure Sensor -G247-.

-- Remove all connectors from the fuel injectors.

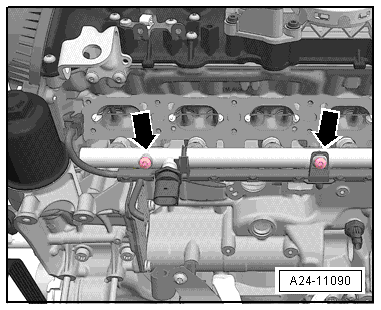

-- Remove bolts -arrows- from the fuel rail.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove fuel rail from the cylinder head.
