Seat, Driver

  1. 1  - Driver Seat Belt Switch -E24-
  2. 2  - Driver Backrest Adjustment Motor -V45-
  3. 3  - Driver Seat Lumbar Support Curvature Adjustment Motor -V125-
  4. 4  - Driver Thorax Airbag Igniter -N199-
  5. 5  - Left Front Seat Adjustment Control Head -EX33-
  6. 6  - Left Front Seat Adjustment Control Head 2 -EX38-
  7. 7  - Driver Seat Lumbar Support Adjustment Switch -E176-
  8. 8  - Driver Backrest Heating Element -Z7-
  9. 9  - Driver Seat Height Adjustment Motor -V138-
  10. 10  - Driver Seat Heating Element -Z6-
  11. 11  - Driver Seat Adjustment Control Module -J810-
  12. 12  - Driver Seat Forward/Back Adjustment Motor -V28-
  13. 13  - Front Seat Heating Control Module -J774-
  14. A  - 6-Pin Connector -T6FS-
  15. A  - 8-Pin Connector -T8LM-

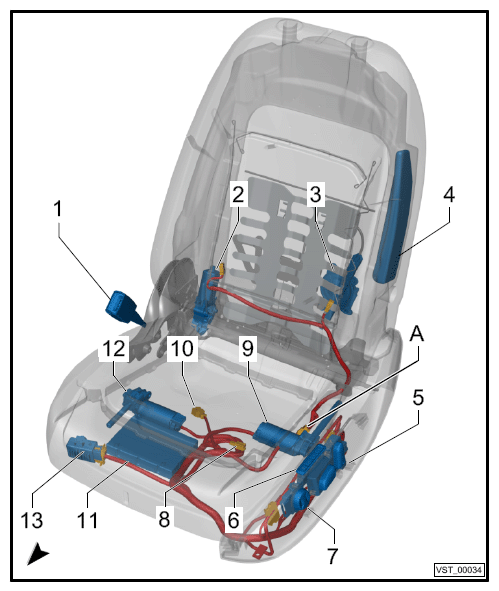

    G12756578Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
